ASCO 8210G09424/DC 1/2in 24VDC Air/Water 0# Min 150# Water

Product Description

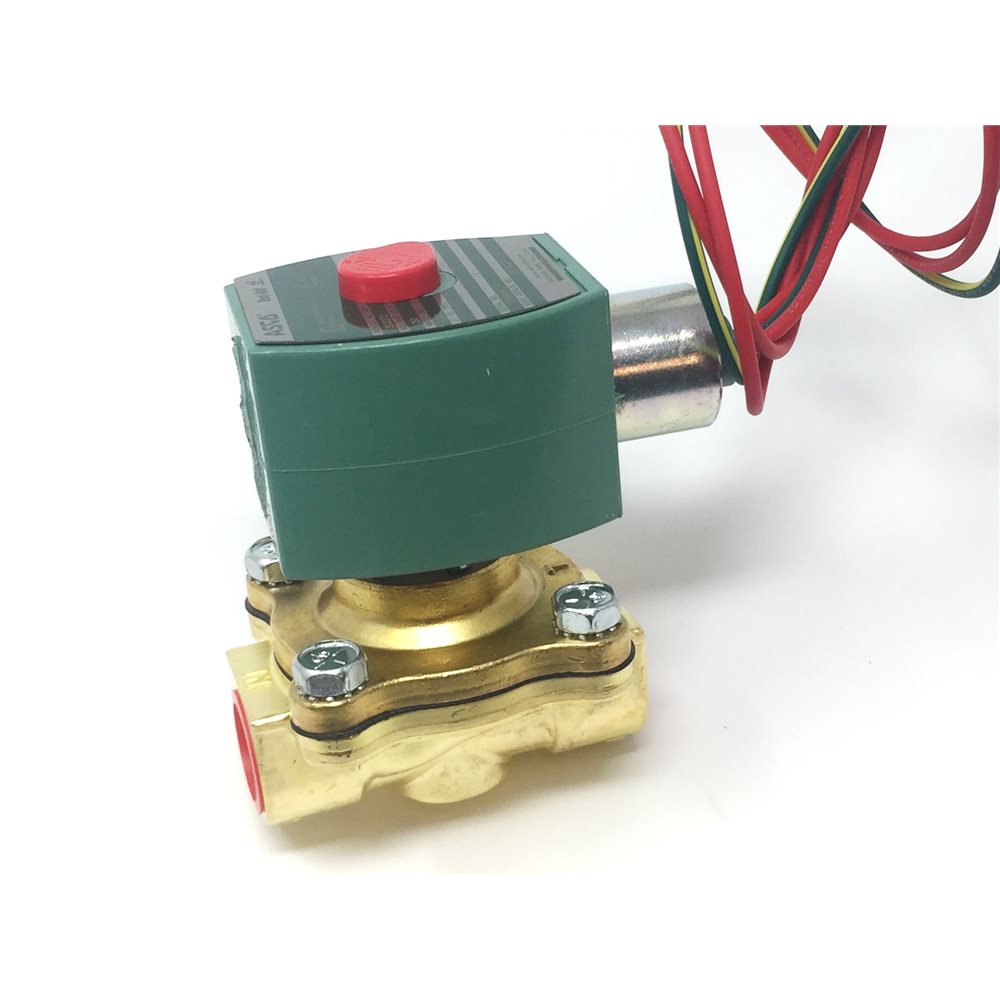

The ASCO 8210G09424/DC is a solenoid valve for air and water applications, designed for a pressure range of zero to one hundred fifty psi. This valve operates on twenty-four volts direct current and offers high reliability in demanding environments.

• Compact size of half an inch with a durable brass body.
• Nema 4X housing suitable for indoor and outdoor use.
• Normally closed operation for immediate shut-off when de-energized.

Product Highlights

This valve is ideal for HVAC, plumbing, and water control systems.

Product Information

Standard Information

• Brand: ASCO
• MPN: 8210G09424/DC

Technical Specifications

• Type: 2 Way
• Mode: Normally Closed
• Pipe Size: 1/2 inches
• Cv: 4
• Coil Voltage: 24V DC
• Body Material: Brass
• Max Fluid Temperature: 150 degrees Fahrenheit
• Weight: 2.25 pounds
• Lead Length: 18 inches
• Housing Type: Nema 4X
• Max Ambient Temperature: 104 degrees Fahrenheit
• Min Ambient Temperature: 32 degrees Fahrenheit
