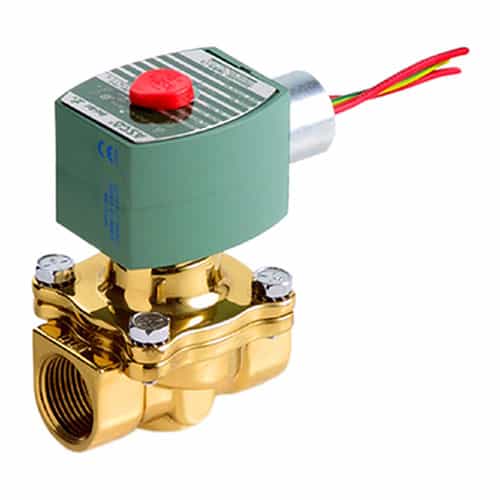

Asco 8210G034 2-way n/o solenoid valve 24 vdc

Product Description

The ASCO 8210G034 is a 2-way normally open solenoid valve designed for use with air, inert gas, light oil, and water. This valve features a brass body and Buna N elastomer seals. It is suitable for applications such as industrial air compressors, laundry equipment, and industrial water control.

• Wide range of pressure ratings and resilient materials for long service life and low internal leakage.
• High flow capacity for liquid, corrosives, and air/inert gas service.
• Enclosure is NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, and NEMA 4X rated.

Product Highlights

This solenoid valve is ideal for use in industrial settings where reliable and efficient control of fluids and gases is required.

Product Information

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8210G034 DC 24/DC D

Technical Specifications

• Max Media Temperature: 180 °F
• Media Compatibility: Air-Inert Gas,Light Oil,Water
• Power Supply: DC Line Power
• Type: 2 Way
• Connection: NPT
• Sensor Type: Two Way
• Valve Operation: Normally Open
• Orifice Size: 5/8 in
• Solenoid Coil: 238710-006-D
• Solenoid Kit: 302449
• Enclosure Rating: NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
• Body Material: Brass
• Cv: 4
• Pipe Size: 1/2 in
• Wetted Materials: Brass, Buna N
• Pressure Range: Air/Inert Gas, Water: 0 - 150 PSI; Oil: 125 PSI
• Supply Voltage (Nominal): 24 VDC
• Function: General Service
• Seal Material: Buna N
• Coil Class: F
• Coil Voltage: 24/DC
• Housing Type: Nema 4X
• Lead Length: 18
• Max (Air): 125 PSI
• Max (Lt Oil): 125 PSI
• Max (Water): 125 PSI
• Max Ambient Temperature: 104
• Max Fluid Temperature: 150
• Min Ambient Temperature: 32
• Min Differential (PSI): 0
• Mounting Direction: Any
• Rebuild Kit Number: 302449
• Seat Material: NBR
• Series: 8210
• Shading Ring: Copper
• Watt Rating: 11.6
• Item Weight: 3.5 lbs.
• Application: Air Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps
• Is FM: No
