Asco 8210G008 AC 24/60 D 8210 Series

Product Description

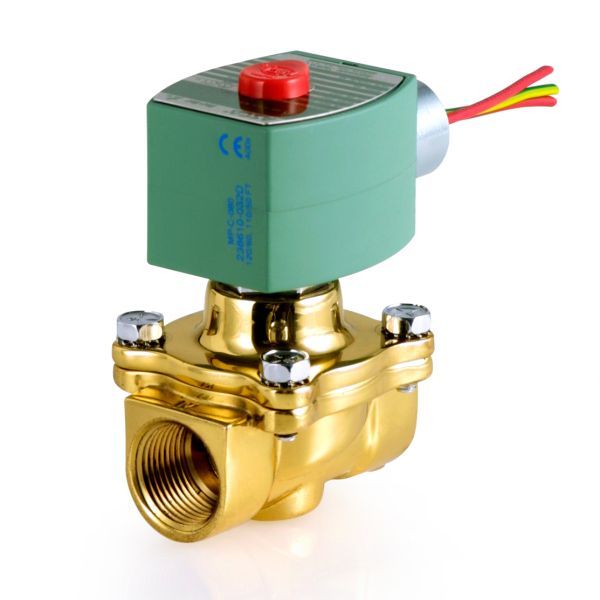

The ASCO 8210G008 AC 24/60 D is a CVLV-SOLENOID, 1-1/4IN, NPT, NC, 24VAC COIL. It features a wide range of pressure ratings, sizes, and resilient materials for long service life and low internal leakage. This valve is designed for high flow capacity for liquid, corrosives, and air/inert gas service.

• Wide range of pressure ratings, sizes, and resilient materials for long service life and low internal leakage
• High flow capacity valves for liquid, corrosives, and air/inert gas service
• General service models for industrial air compressors, laundry, power washing, industrial water control, pumps

Product Highlights

The ASCO 8210G008 is ideal for industrial air compressors, laundry, power washing, and industrial water control.

Product Information

Standard Information

• Brand: ASCO
• Manufacturer Part Number: 8210G008 AC 24/60 D

Technical Specifications

• Max Media Temperature: 180 °F
• Media Compatibility: Air-Inert Gas,Light Oil,Water
• Power Supply: AC Line Power
• Type: Two Way
• Connection: NPT
• Sensor Type: Two Way
• Valve Operation: Normally Closed
• Orifice Size: 1-1/8 in
• Solenoid Coil: 238210-005-D
• Solenoid Kit: 302280
• Enclosure Rating: NEMA 1,NEMA 2,NEMA 3,NEMA 3S,NEMA 4,NEMA 4X
• Body Material: Brass
• Cv: 15
• Pipe Size: 1-1/4 in
• Wetted Materials: Brass, Buna N
• Pressure Range: Air/Inert Gas, Water: 5 - 150 PSI; Oil: 5 - 100 PSI
• Supply Voltage (Nominal): 24/60 VAC
• Seal Material: Buna N
• Is FM: No
• Manufacturer: ASCO
• Order Code: 21386
• Mfg. Product Number: 8210G008AC24/60D
• Body Design: 2-Way
• Operation: Normally Closed
• Voltage: 24/60 AC
• Valve Service: General Service
• Series: 8210
• Max Fluid Temp: 180°F
• Ambient Temp. Range: 32 to 125°F
• Min. OPD: 5 PSI
• Max OPD Air: 150 PSI
• Max OPD Water: 150 PSI
• Max OPD Lt. Oil: 100 PSI
• Coil Wattage: 6.1
• Electrical Connection: 1/2" Conduit w/ 18" Leads
• Solenoid Enclosure: Watertight
• Kit: 302280
• Coil: 238210-005-D*
• Construction: Solenoid
• Seat Material: NBR
