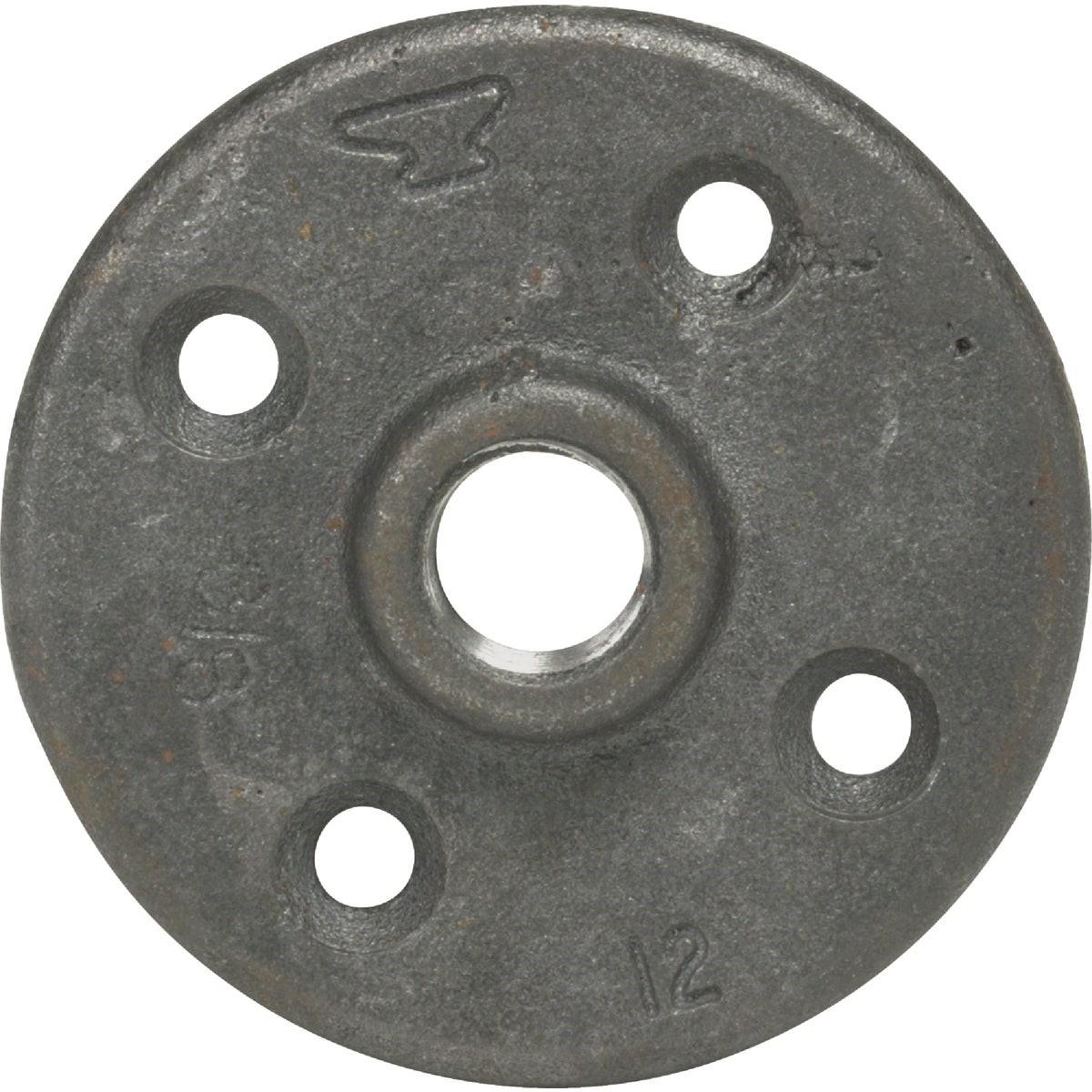

Asc Engineered Solutions 8700163903 Black Iron Floor Flange

Product Description

The ASC Engineered Solutions 8700163903 is a black iron floor flange designed to anchor pipe securely to a floor or wall surface. Built from malleable iron, this fitting delivers the tensile strength and ductility that plumbing and mechanical contractors depend on for permanent pipe anchoring applications. The 3/4 inch pipe size suits common residential and light commercial piping runs, and the 3-3/8 inch bolt circle diameter allows for solid fastening to wood, concrete, or metal surfaces. Licensed plumbers and pipefitters install this fitting as part of gas, water, or structural pipe assemblies where a rigid, floor- or wall-mounted connection point is required.

This floor flange is used in residential and light commercial plumbing, gas distribution, and structural pipe installations. It is suited for applications where a pipe must be terminated and secured at a floor or wall, including pipe railing bases, exposed gas drops, and drain or supply line anchoring. The black iron finish is standard for gas piping systems where threading and sealing with pipe compound is the normal installation method.

Key Features

• Malleable iron construction provides high tensile strength and resistance to cracking under load
• Black iron finish is compatible with standard gas piping installation practices
• 3/4 inch pipe size fits one of the most common residential and light commercial pipe sizes
• Flat flange base allows secure bolting to floors, walls, and structural surfaces
• Threaded center hub accepts standard NPT pipe for a tight, sealable connection

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4 inch NPT threaded iron pipe systems in residential and light commercial plumbing and gas piping applications.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter in accordance with applicable local plumbing and mechanical codes. Shut off and depressurize the pipe system before threading or unthreading any fittings. Apply an approved pipe thread sealant or thread tape rated for the intended service medium before making up the threaded connection. For gas service, installation must comply with IFGC requirements and should be inspected and pressure-tested before returning the system to service.

Technical Specifications

• Pipe Size: 3/4 inch
• Overall Diameter: 3-3/8 inches
• Material: Malleable Iron
• Finish: Black Iron
• Weight: 0.569 pounds
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700163903
