Asc Engineered Solutions 8700163853 Floor Flange

Product Description

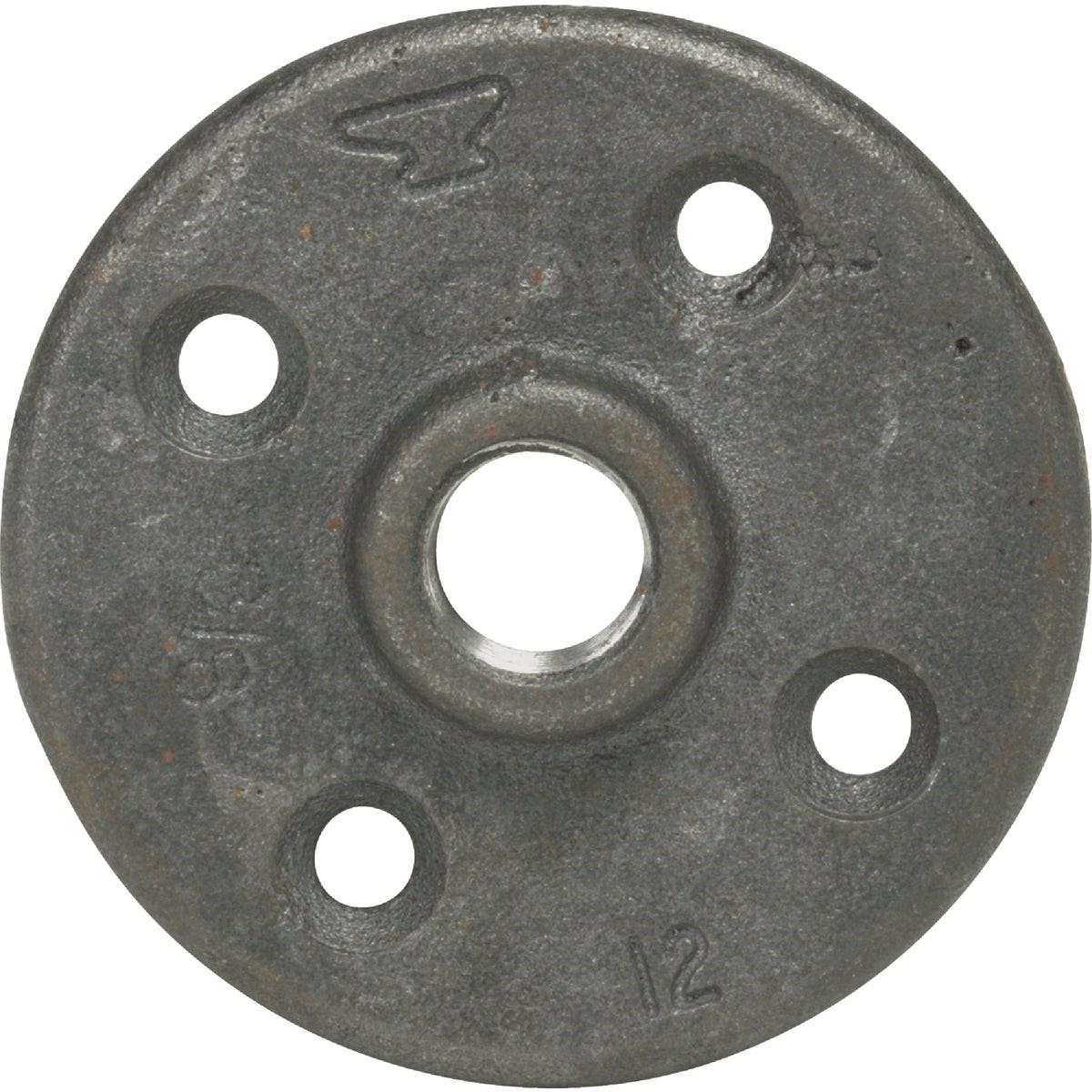

The ASC Engineered Solutions 8700163853 is a black iron floor flange designed to anchor pipe to a floor or wall surface. Constructed from malleable iron, it provides reliable tensile strength and resistance to rust in typical piping installations. At 0.526 pounds, this is a compact, single-piece fitting sized for 1/2 inch nominal pipe. Plumbers and pipefitters install this flange as a termination or mounting point in gas, water, and general-purpose piping systems where a secure floor or wall connection is required.

This floor flange is used in residential and light commercial plumbing and gas piping applications. It is installed where a run of 1/2 inch pipe must be anchored to a structural surface, such as at the base of a riser, at a wall penetration, or as part of a pipe support assembly. It suits new construction and retrofit work in both above-ground interior and dry interior environments.

Key Features

• Malleable iron construction for superior tensile strength compared to cast iron alternatives
• Black iron finish with inherent rust resistance for dry interior service
• Sized for 1/2 inch nominal pipe for a secure threaded connection
• Sold individually, allowing single-unit procurement for repair or small installation jobs
• Compact and lightweight at 0.526 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement or new-installation floor flange for standard 1/2 inch NPT threaded pipe in residential and light commercial plumbing and gas piping systems.

Installation Notes

Floor flanges are installed by licensed plumbers or pipefitters in accordance with applicable local plumbing and mechanical codes, including IPC guidelines where adopted. Shut off and depressurize the piping system fully before removing or installing any threaded fitting. Use an appropriate pipe thread sealant or tape rated for the service type when making threaded connections. Secure the flange to the mounting surface using fasteners appropriate for the substrate before making the pipe connection.

Technical Specifications

• Pipe Size: 1/2 inch
• Material: Malleable iron
• Finish: Black iron
• Weight: 0.526 pounds
• Unit of Measure: Each
• UPC: 00690291026461

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700163853
