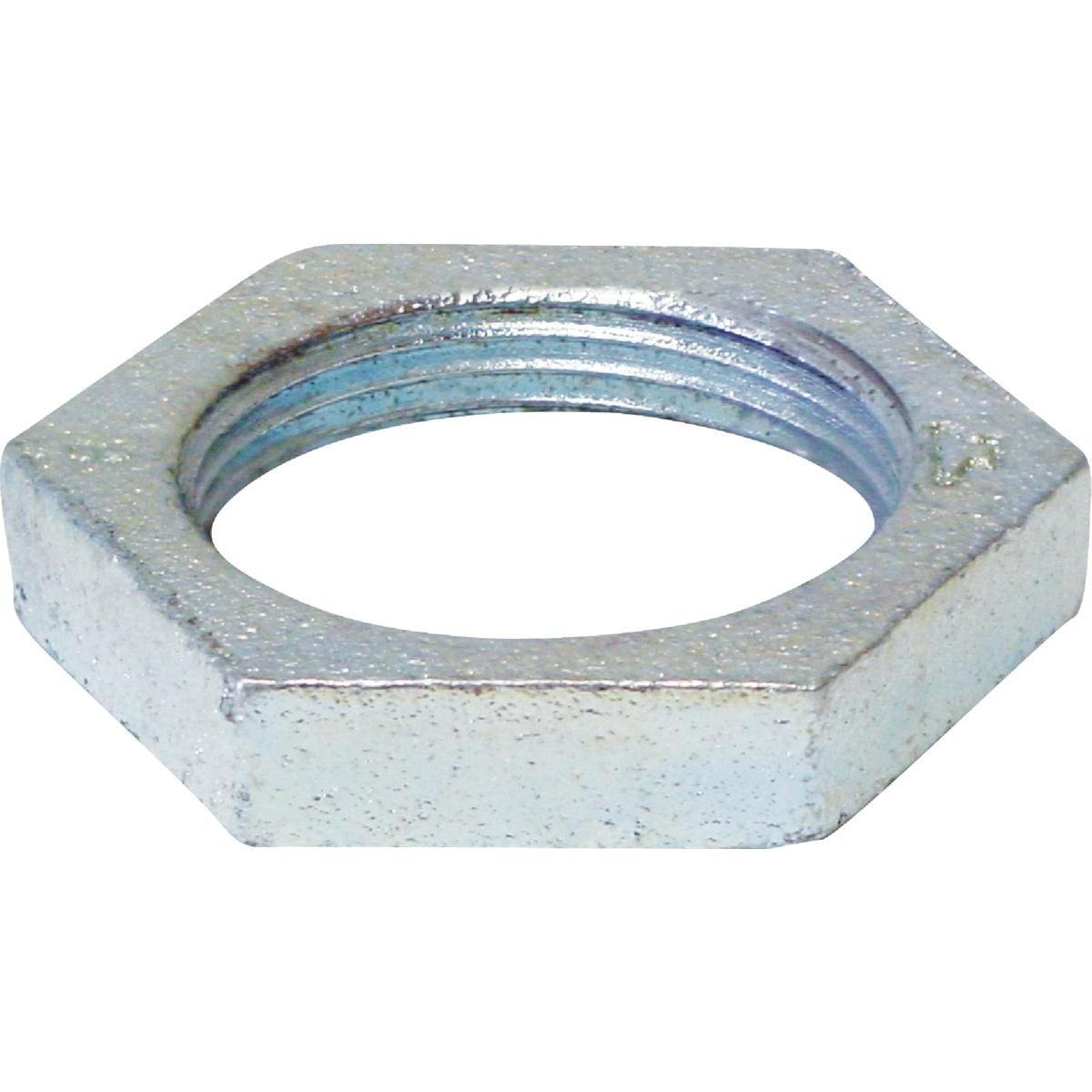

Asc Engineered Solutions 8700162558 Galvanized Lock Nut

Product Description

The ASC Engineered Solutions 8700162558 is a 3/4 inch malleable iron galvanized lock nut used to secure pipe fittings and threaded connections in piping systems. Manufactured from malleable iron meeting ASTM A-197 chemical and physical property standards, it carries a galvanized finish per ASTM A-153 for corrosion resistance in wet or outdoor environments. Threads conform to ANSI B-2.1 pipe thread standards, and dimensions meet ANSI B-16.3. Sold individually, this lock nut is a standard item for plumbers and pipefitters working on threaded iron pipe assemblies in commercial and residential applications.

This lock nut is suited for use in water supply, gas distribution, and general-purpose threaded pipe installations where a secure mechanical connection is required. It is commonly installed at unions, fittings, and pipe terminations where vibration or backpressure could loosen standard connections. The galvanized coating makes it appropriate for damp or corrosive service environments. Licensed plumbers and pipefitters install this fitting on Schedule 40 and standard-weight threaded black or galvanized iron pipe systems.

Key Features

• Malleable iron construction per ASTM A-197 for strength and machinability
• Galvanized finish per ASTM A-153 for corrosion resistance
• Threads conform to ANSI B-2.1 pipe thread standard
• Dimensions meet ANSI B-16.3 and Fed. Spec. WW-P-521F
• Also meets Fed. Spec. WW-P-471-B for ferrous locknuts
• 3/4 inch pipe size, sold individually

Compatibility

Designed as an OEM-style replacement lock nut for standard 3/4 inch threaded malleable iron pipe fittings and assemblies in residential and commercial plumbing and mechanical piping systems.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. Shut off and depressurize the pipe system before removing or installing any threaded fitting. Use a pipe wrench sized appropriately for 3/4 inch fittings and apply thread sealant or PTFE tape to pipe threads per local code requirements. Thread engagement and tightening should follow IFGC or IPC guidelines applicable to the service type.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized
• Pipe Size: 3/4 inch
• Weight: 0.09 pounds
• Dimension Standard: ANSI B-16.3
• Thread Standard: ANSI B-2.1
• Material Standard: ASTM A-197
• Galvanizing Standard: ASTM A-153
• Federal Specification: WW-P-521F, WW-P-471-B
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700162558
