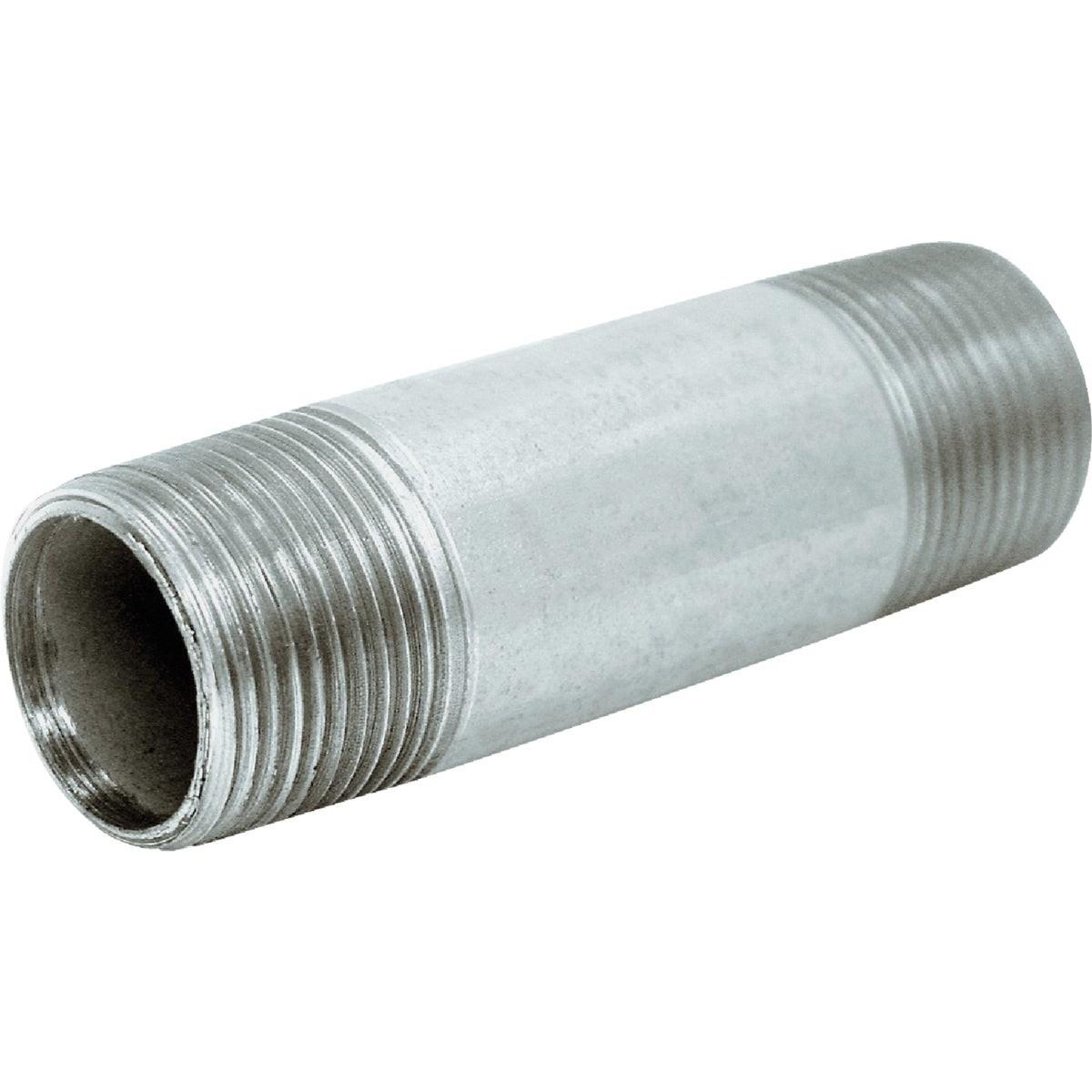

Asc Engineered Solutions 8700148656 Galvanized Nipple 3/8x5.5in

Product Description

The ASC ENGINEERED SOLUTIONS 8700148656 is a welded steel galvanized pipe nipple used to connect threaded pipe fittings in plumbing, mechanical, and gas piping systems. Sized at 3/8 inch nominal diameter and 5-1/2 inches in length, it is manufactured to Schedule 40 wall thickness for standard-pressure applications. The hot-dipped galvanized finish provides corrosion resistance suited to both indoor and outdoor installations. Lead content on wetted surfaces is held to no more than 0.25% weighted average, supporting compliance with lead-free installation requirements. Licensed plumbers, pipefitters, and mechanical contractors are the primary installers of this type of nipple.

This nipple is used in residential and light commercial piping systems where a short threaded extension or close connection is needed between fittings, valves, or equipment. Typical applications include water supply lines, gas distribution piping, and mechanical room connections. The hot-dipped galvanized coating makes it appropriate for mildly corrosive environments and exterior-adjacent installations. It meets ASTM A53 standards, making it suitable for pressure piping applications within that specification scope.

Key Features

• Hot-dipped galvanized finish for corrosion resistance in water and mechanical piping applications
• Schedule 40 wall thickness for standard-pressure service
• Meets ASTM A53 standards for welded steel pipe
• Lead content limited to no more than 0.25% weighted average on wetted surfaces
• 3/8 inch nominal diameter with 5-1/2 inch overall length

Compatibility

Designed as an OEM-style replacement or new-installation component for standard Schedule 40 threaded steel pipe systems using 3/8 inch nominal pipe thread fittings.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing and mechanical codes, including IPC and IFGC requirements where relevant. Shut off and depressurize the pipe system completely before removing or installing any threaded components. Apply an appropriate thread sealant or PTFE tape to male threads before assembly. Do not over-tighten threaded connections, as this can damage fittings or the nipple threads.

Technical Specifications

• Nominal Pipe Size: 3/8 inch
• Length: 5-1/2 inches
• Schedule: 40
• Material: Welded Steel
• Finish: Hot-Dipped Galvanized
• Standard: ASTM A53
• Max Lead Content (Wetted Surfaces): 0.25% weighted average
• Weight: 0.272 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700148656
