Asc Engineered Solutions 8700147203 Galvanized Pipe Nipple

Product Description

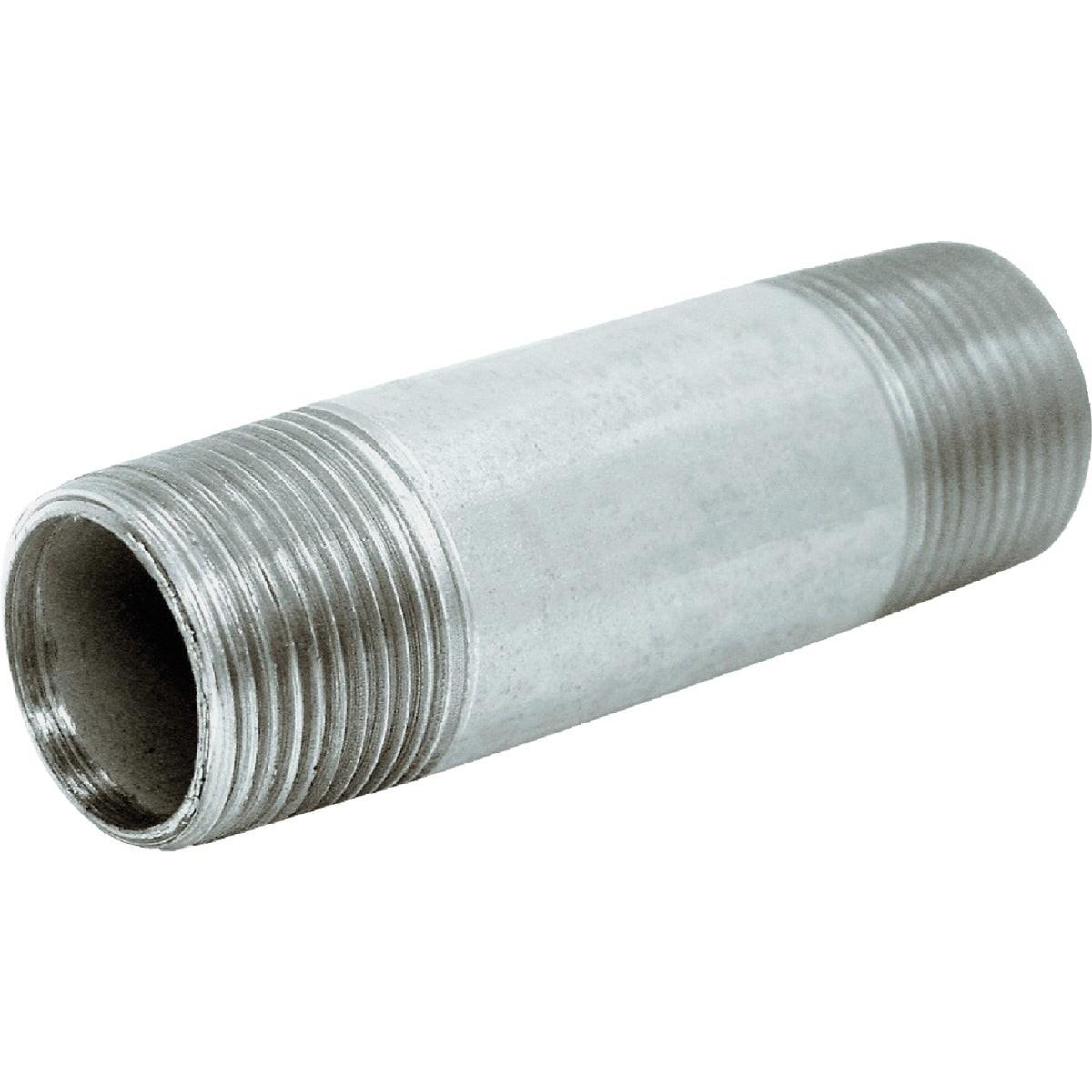

The ASC Engineered Solutions 8700147203 is a welded steel galvanized pipe nipple used in threaded pipe assemblies across plumbing, HVAC, and mechanical systems. Sized at 1/8 inch nominal diameter by 5 inches in length, this Schedule 40 nipple is hot-dip galvanized for corrosion resistance in both indoor and outdoor installations. It meets ASTM A53 standards and is manufactured to contain no more than 0.25% weighted average lead content on wetted surfaces, making it suitable for use in systems requiring lead-restriction compliance. Licensed plumbers and pipefitters install this nipple as a standard threaded connector between fittings, valves, and pipe runs.

This nipple is appropriate for residential and light commercial threaded pipe systems where a short, fixed-length galvanized steel connector is required. Typical applications include water supply lines, gas distribution piping, compressed air systems, and general mechanical piping where Schedule 40 galvanized steel is specified. The 1/8 inch size is commonly used in branch connections, instrument taps, and small-bore service lines.

Key Features

• Hot-dip galvanized finish for corrosion resistance in wet and outdoor environments
• Meets ASTM A53 standards for welded and seamless steel pipe
• Schedule 40 wall thickness for standard-pressure threaded pipe applications
• Lead-compliant construction with no more than 0.25% weighted average lead content on wetted surfaces
• Nominal 1/8 inch diameter by 5 inch length for precise, fixed-length connections

Compatibility

Designed as a standard Schedule 40 threaded galvanized steel nipple compatible with 1/8 inch NPT fittings, valves, and couplings used in residential and commercial mechanical piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes, including the IPC and IFGC where relevant. Shut off the water or gas supply and depressurize the line before threading or replacing nipples. Apply appropriate thread sealant or PTFE tape to NPT threads before assembly. Do not over-tighten threaded connections, as this can crack fittings or distort threads.

Technical Specifications

• Nominal Pipe Size: 1/8 inch
• Length: 5 inches
• Schedule: Schedule 40
• Material: Welded Steel
• Finish: Hot-Dip Galvanized
• Standard: ASTM A53
• Lead Content (Wetted Surfaces): 0.25% weighted average maximum
• Weight: 0.097 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700147203
