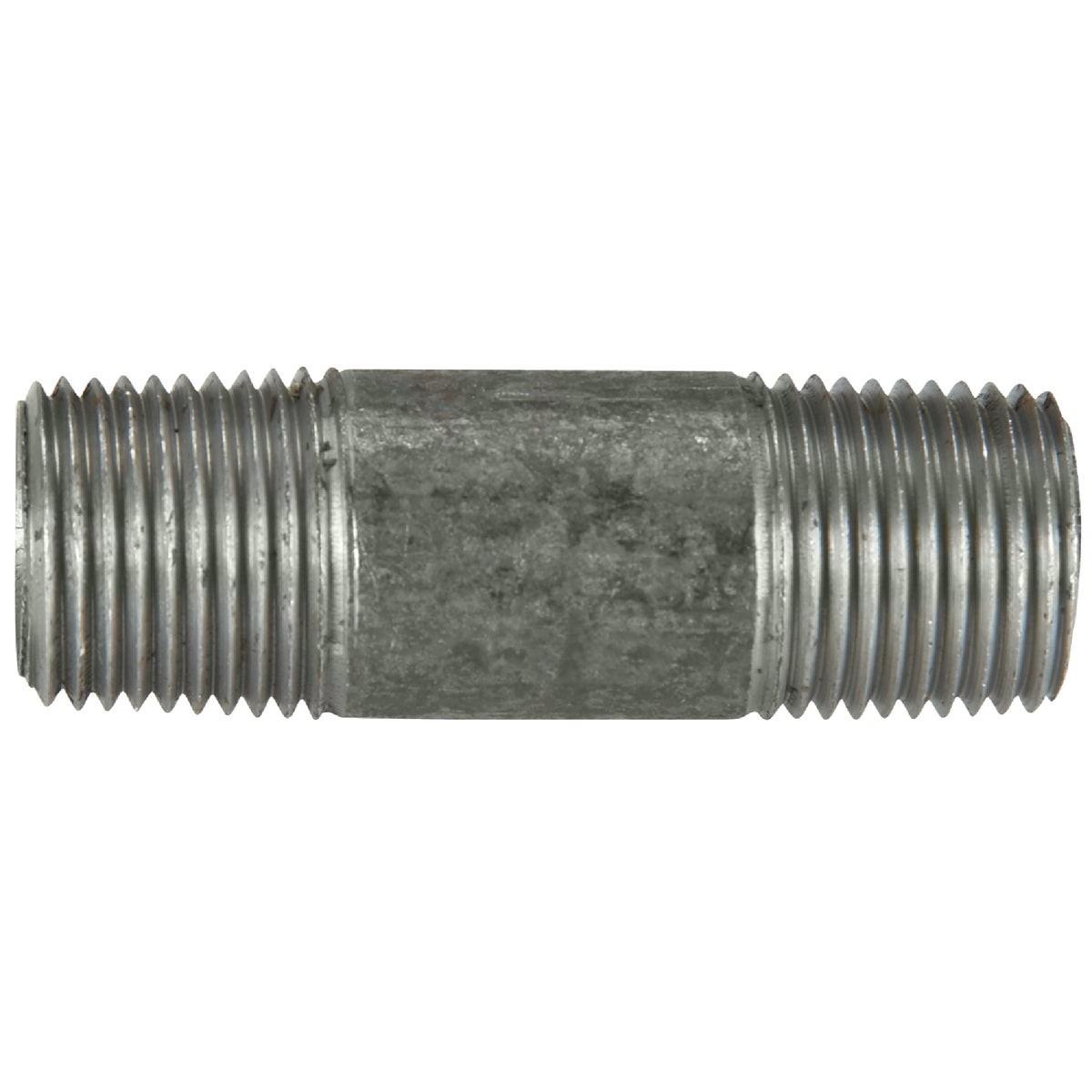

Asc Engineered Solutions 8700138509 Black Iron Pipe Nipple

Product Description

The ASC Engineered Solutions 8700138509 is a Schedule 40 black iron pipe nipple used to connect threaded pipe fittings in gas, water, and general plumbing systems. Manufactured from welded steel with a black coating applied to resist corrosion, this nipple measures 0.5 inch in diameter and 2.5 inches in length. It features standard NPT threads on both ends and meets ASTM A53 requirements for steel pipe. Licensed plumbers and pipefitters install this type of nipple in residential and light commercial applications where a short, rigid threaded connection is needed between valves, fittings, or equipment.

This nipple is suited for use in gas distribution piping, steam systems, compressed air lines, and general water service applications where Schedule 40 wall thickness is specified. Its compact 2.5-inch length makes it a close nipple choice for tight-clearance runs. It is sold individually and is stocked in minimum quantities of 6 units, making it practical for both single repairs and small-batch installations.

Key Features

• Schedule 40 wall thickness for standard-pressure service
• Black coating applied over welded steel to resist corrosion
• NPT standard pipe threads on both ends for reliable sealing
• Meets ASTM A53 material standard for steel pipe
• 0.5 inch nominal diameter x 2.5 inch length for tight-clearance connections

Compatibility

Designed as a standard NPT-threaded replacement nipple compatible with Schedule 40 black iron and steel pipe fittings used in residential and commercial gas, steam, air, and water piping systems.

Installation Notes

Installation is performed by licensed plumbers or pipefitters in accordance with applicable local codes, the International Fuel Gas Code (IFGC), or the International Plumbing Code (IPC) depending on the service. Shut off the gas or water supply and depressurize the line completely before removing or installing any threaded pipe component. Apply an approved thread sealant or PTFE tape to the male threads before assembly. Do not over-tighten; snug the connection firmly with pipe wrenches to avoid cracking fittings or distorting threads.

Technical Specifications

• Nominal Pipe Size: 0.5 inch
• Length: 2.5 inches
• Schedule: 40
• Thread Type: NPT Standard Pipe Thread
• Material: Welded Steel, Black Coated
• Standard: ASTM A53
• Weight: 0.132 pounds
• UPC: 00690291041471

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700138509
