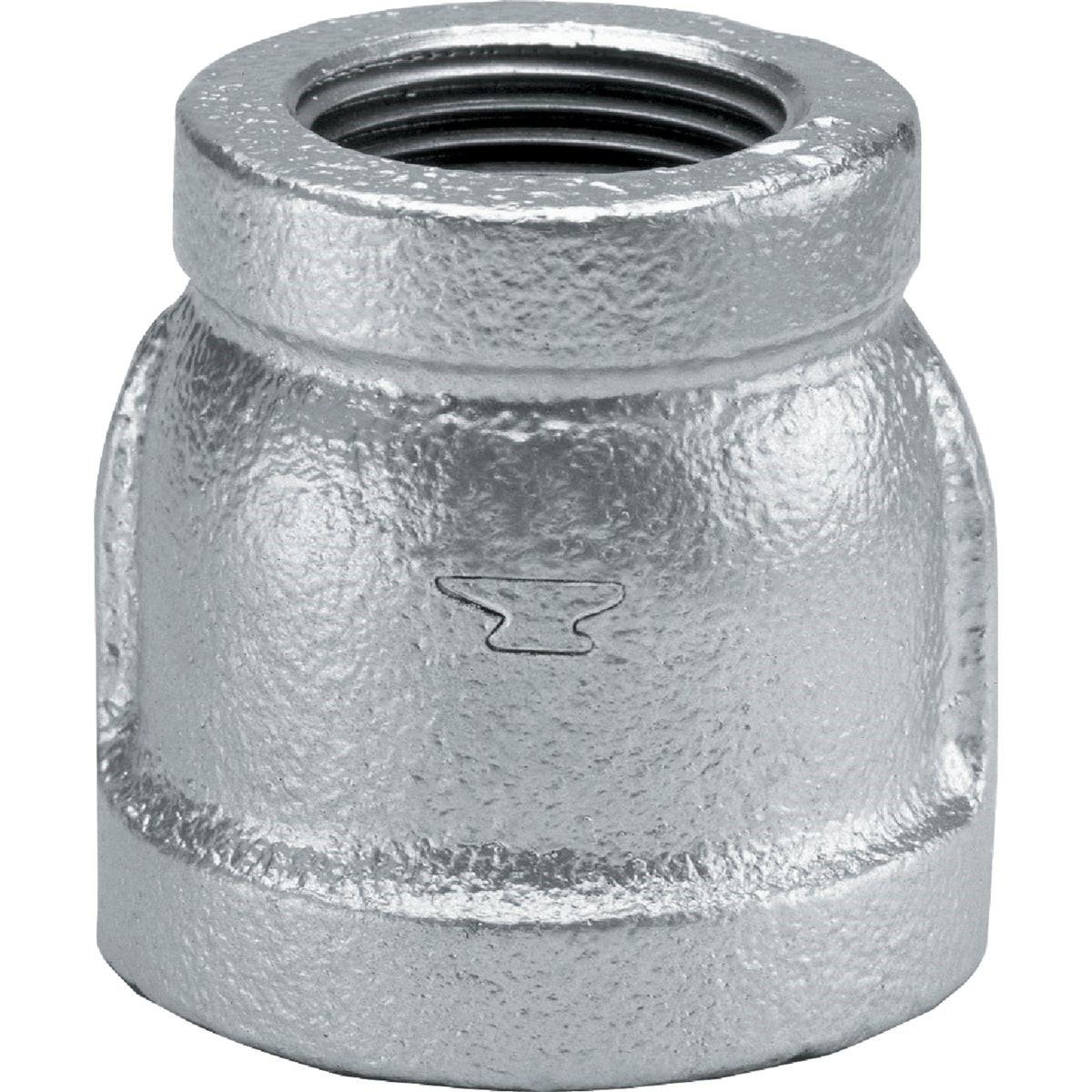

Asc Engineered Solutions 8700135000 Reducing Galvanized Coupling

Product Description

The ASC Engineered Solutions 8700135000 is a reducing galvanized coupling designed for threaded pipe connections in plumbing and mechanical piping systems. It steps down from a 3/8-inch female pipe thread (FPT) inlet to a 1/4-inch FPT outlet, allowing techs to connect pipes of two different diameters within the same run. The fitting is constructed from malleable iron, which provides high tensile strength and resistance to mechanical stress. A galvanized finish is applied to resist rust and corrosion in wet or exposed service environments. Licensed plumbers and pipefitters are the primary installers of this fitting type.

This reducing coupling is suited for residential and light commercial piping applications where threaded galvanized pipe is used. Typical installations include water supply lines, gas distribution systems, and general mechanical piping where a diameter reduction is needed at a coupling point. The 3/8-inch to 1/4-inch FPT configuration handles branch takeoffs, gauge ports, and instrument connections that require a smaller outlet thread size at a straight coupling rather than a tee or bushing arrangement.

Key Features

• Malleable iron construction provides high tensile strength for threaded piping systems
• Galvanized finish resists rust and corrosion in wet or exposed environments
• 3/8-inch FPT inlet to 1/4-inch FPT outlet reduces pipe size in a straight coupling body
• Female pipe thread on both ends allows direct connection to male-threaded pipe or fittings
• Sold individually (each)

Compatibility

Designed as an OEM-style replacement or standard fitting for threaded galvanized malleable iron piping systems using 3/8-inch and 1/4-inch NPT pipe connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code (IPC) or International Fuel Gas Code (IFGC) where applicable. Shut off the water or gas supply and depressurize the line before making or breaking any threaded connection. Apply thread sealant tape or pipe compound rated for the service medium to the male threads before assembly. Do not over-tighten, as malleable iron fittings can crack under excessive torque.

Technical Specifications

• Inlet Thread Size: 3/8 inches FPT
• Outlet Thread Size: 1/4 inches FPT
• Thread Type: Female Pipe Thread (FPT) both ends
• Material: Malleable Iron
• Finish: Galvanized
• Weight: 0.135 pounds
• UPC: 00690291030901

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700135000
