Asc Engineered Solutions 8700134953 Reducing Coupling

Product Description

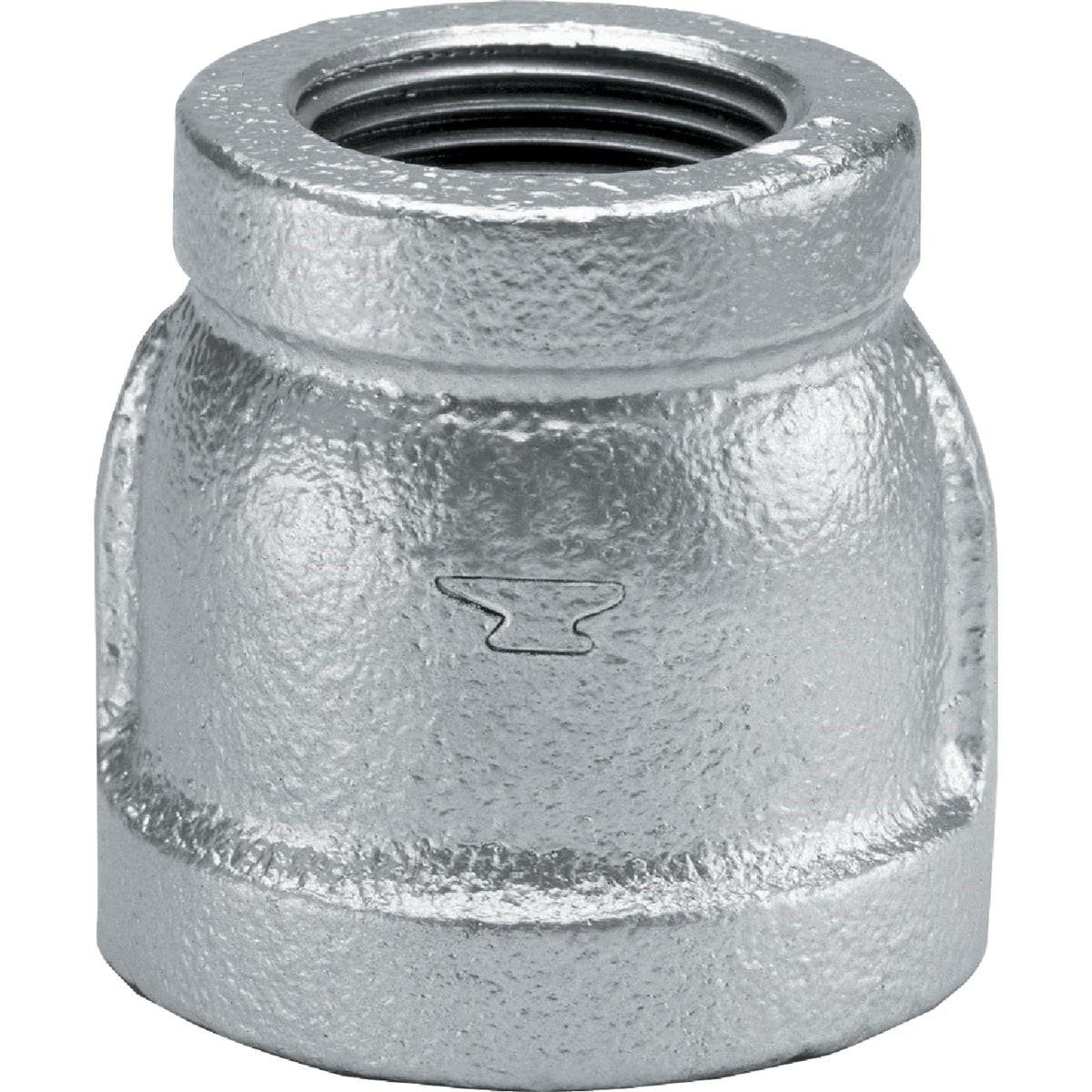

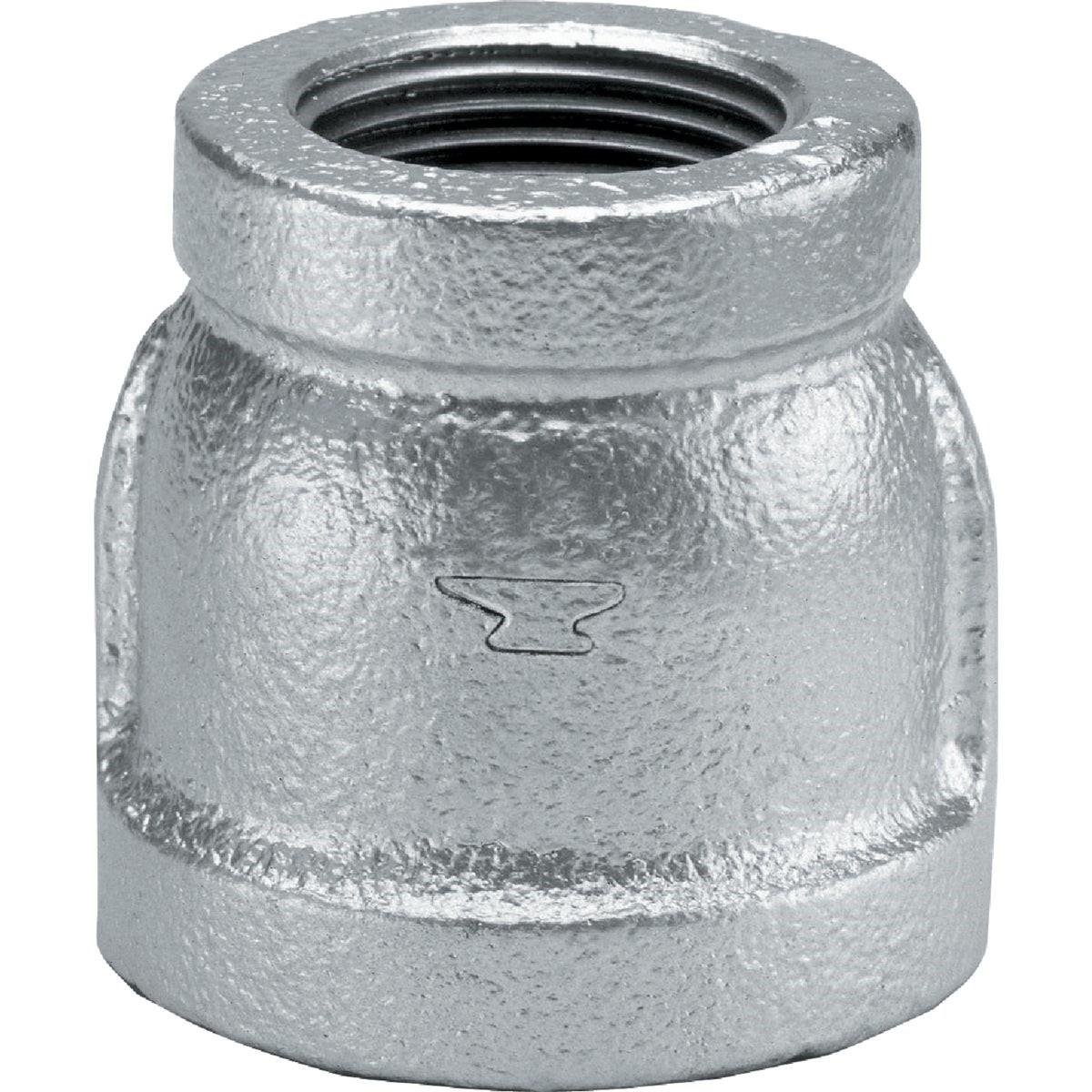

The ASC ENGINEERED SOLUTIONS 8700134953 is a galvanized malleable iron reducing coupling designed to connect two female pipe thread (FPT) ports of different sizes in threaded piping systems. It transitions from a 1/4-inch FPT end to a 1/8-inch FPT end, allowing diameter changes within a run without additional adapters. The galvanized finish provides corrosion resistance for use in moisture-prone environments. Malleable iron construction delivers the high tensile strength required for reliable sealing under standard plumbing and mechanical system pressures. Plumbers and pipefitters install this fitting in residential and light commercial piping applications.

This reducing coupling is suited for use in threaded pipe assemblies where a size reduction between 1/4-inch and 1/8-inch FPT connections is required. Typical applications include water supply lines, compressed air distribution, gas piping, and mechanical system branch connections. The galvanized finish makes it appropriate for exposed or semi-exposed installations where bare iron fittings would be vulnerable to surface oxidation. It is sold individually and is compatible with standard NPT-threaded pipe and fittings of matching material ratings.

Key Features

• Reduces from 1/4-inch FPT to 1/8-inch FPT in a single fitting
• Malleable iron construction for high tensile strength and durability
• Galvanized finish resists rust and corrosion in wet or humid environments
• Threaded FPT connections on both ends for standard NPT compatibility
• Lightweight at 0.08 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement or direct-use fitting for threaded malleable iron piping systems using standard NPT pipe threads in 1/4-inch and 1/8-inch sizes.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing and mechanical codes, including IPC and IFGC requirements where relevant. Always shut off and depressurize the supply line before removing or installing threaded fittings. Apply an approved thread sealant or PTFE tape to the male threads before assembly. Do not overtighten, as malleable iron fittings can crack if subjected to excessive torque.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized
• Connection Type: Female Pipe Thread (FPT) both ends
• Inlet Size: 1/4 inches FPT
• Outlet Size: 1/8 inches FPT
• Weight: 0.08 pounds
• UPC: 00690291030895
• Sold As: Each

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700134953
