Asc Engineered Solutions 8700130654 Hex Galvanized Bushing

Product Description

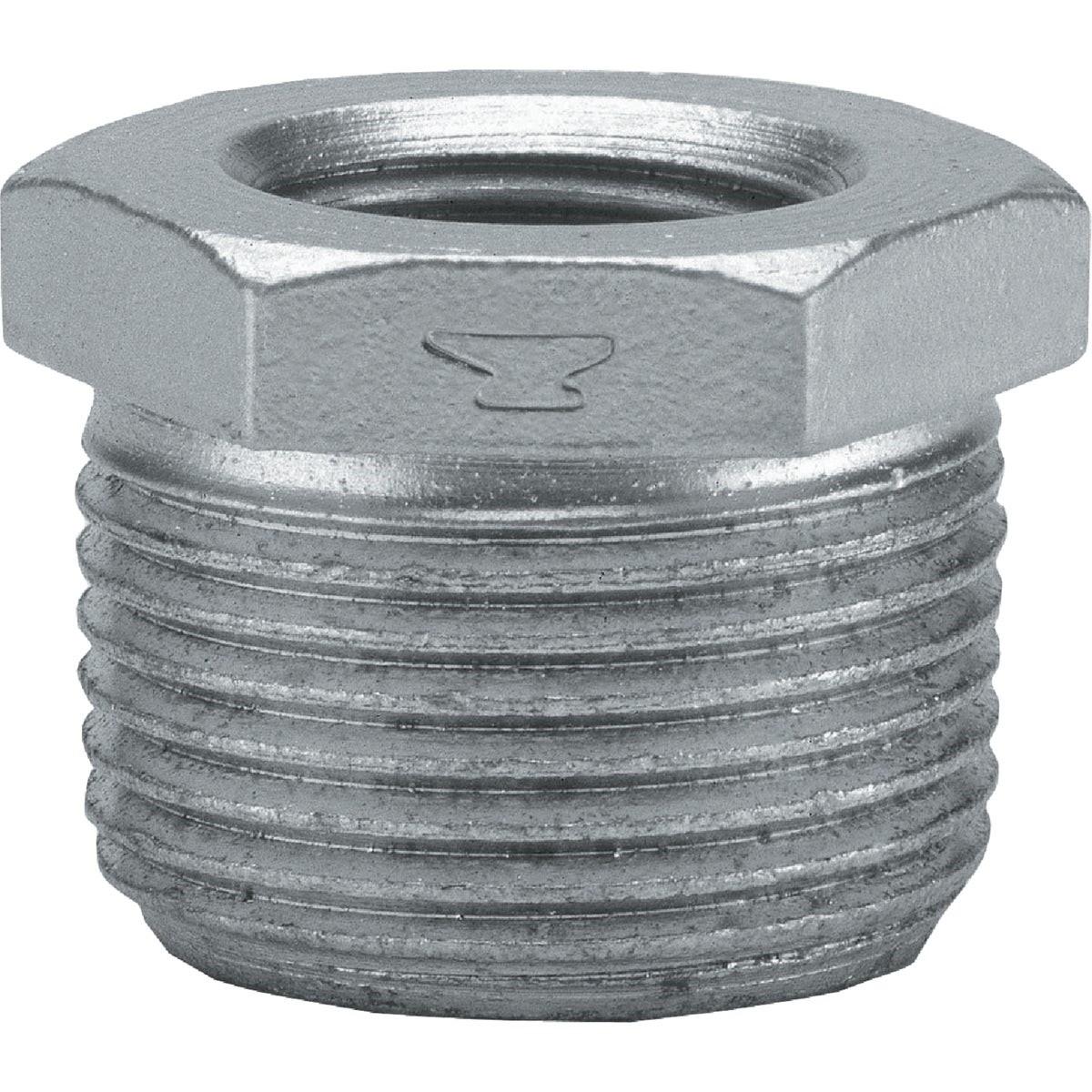

The ASC ENGINEERED SOLUTIONS 8700130654 is a hex galvanized bushing made from malleable iron, designed to reduce pipe size within threaded piping systems. It features a 3/4-inch male thread on the larger end and a 3/8-inch female thread on the smaller end, allowing a smooth transition between two different pipe diameters. This fitting is galvanized for corrosion resistance and is suited for use in plumbing, mechanical, and light industrial piping systems. Licensed plumbers and pipefitters typically install this fitting as part of standard threaded iron pipe assemblies.

This bushing is used in residential and commercial piping applications where a threaded reduction is needed between a 3/4-inch line and a 3/8-inch branch or connection point. It is commonly installed in water supply, gas distribution, and other ferrous pipe systems that call for malleable iron fittings. The hex profile allows easy wrench engagement during installation, making it suitable for tight spaces where standard wrenching access is required.

Key Features

• Malleable iron construction provides durability and resistance to impact in threaded piping systems
• Galvanized finish adds corrosion resistance for longevity in wet or humid environments
• 3/4-inch male thread on the larger end, 3/8-inch female thread on the smaller end
• Hex outer profile allows secure wrench grip during installation
• Meets Federal Spec WW-P-471-B, ANSI B-16.14 for dimensions, and ANSI B-2.1 for pipe threads

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard threaded malleable iron pipe systems using 3/4-inch and 3/8-inch NPT connections.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter following applicable IPC and IFGC requirements. Shut off and depressurize the piping system completely before removing or installing any threaded fittings. Apply thread sealant or PTFE tape to the male threads before assembly. Do not overtighten, as malleable iron fittings can crack under excessive torque.

Technical Specifications

• Material: Malleable Galvanized Iron
• Larger Thread (Male): 3/4 inches NPT
• Smaller Thread (Female): 3/8 inches NPT
• Weight: 0.15 pounds
• Standards: Fed. Spec. WW-P-471-B, ANSI B-16.14, ANSI B-2.1
• Unit of Measure: Each

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700130654
