Asc Engineered Solutions 8700127551 Black Iron 90 Elbow 2 in

Product Description

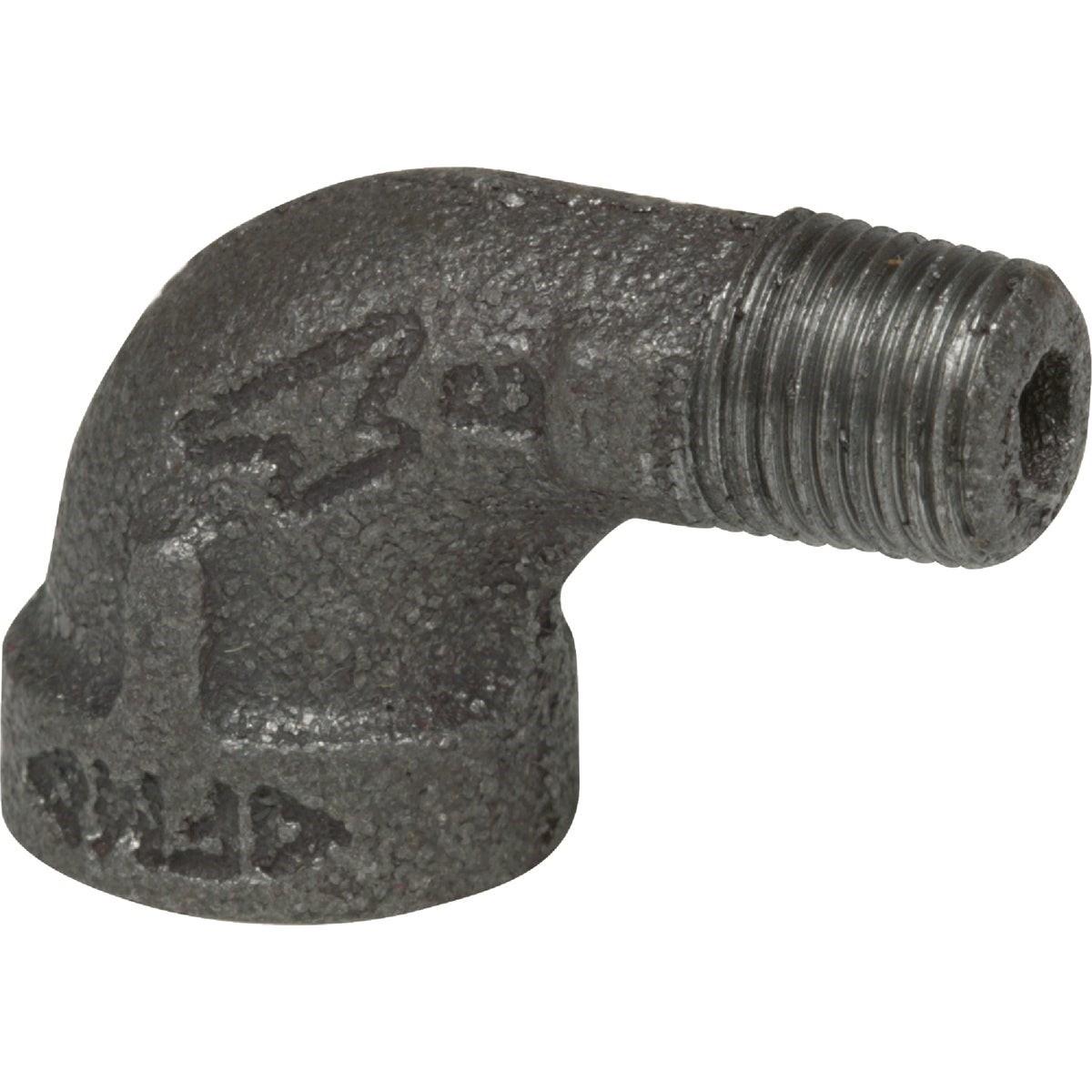

The ASC Engineered Solutions 8700127551 is a 2-inch malleable black iron 90-degree elbow (1/4 bend) used to redirect piping runs at a right angle in threaded pipe systems. It features male and female NPT threads on each end, allowing straightforward connection between two sections of pipe without additional adapters. The flat banded, straight-size design meets standard dimensional requirements for malleable iron fittings. Plumbers and pipefitters install this fitting in gas, steam, and liquid pipe assemblies where a durable, threaded iron elbow is required.

This elbow is suited for residential and commercial piping applications including gas distribution, steam lines, and general-purpose plumbing systems. The black iron finish makes it a common choice for natural gas and propane supply lines. The 2-inch NPT thread size fits standard schedule pipe and pairs with other malleable iron fittings in the same size family. It is sold individually and is appropriate for new construction as well as retrofit and repair work.

Key Features

• 90-degree turn (1/4 bend) for right-angle pipe routing
• Male and female NPT threads for tool-standard threaded connections
• Flat banded straight-size body for consistent dimensional fit
• Compliant with Fed. Spec. WW-P-521F, ANSI B-16.3 dimensions, ANSI B-2.1 pipe threads, and ASTM A-197 chemical and physical properties
• Malleable black iron construction for strength in threaded systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch NPT threaded malleable iron pipe systems in gas, steam, and general plumbing applications.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable codes such as the IPC or IFGC. Shut off the gas or fluid supply and relieve system pressure before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to NPT threads before assembly, and tighten with a pipe wrench to a firm, leak-free connection. Do not over-tighten malleable iron fittings, as the material can crack under excessive torque.

Technical Specifications

• Size: 2 inches
• Thread Type: NPT (Male and Female)
• Angle: 90 degrees (1/4 Bend)
• Material: Malleable Black Iron
• Weight: 2.15 pounds
• Standards: Fed. Spec. WW-P-521F, ANSI B-16.3, ANSI B-2.1, ASTM A-197
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700127551
