Asc Engineered Solutions 8700126801 Galvanized Elbow 1-1/2 in

Product Description

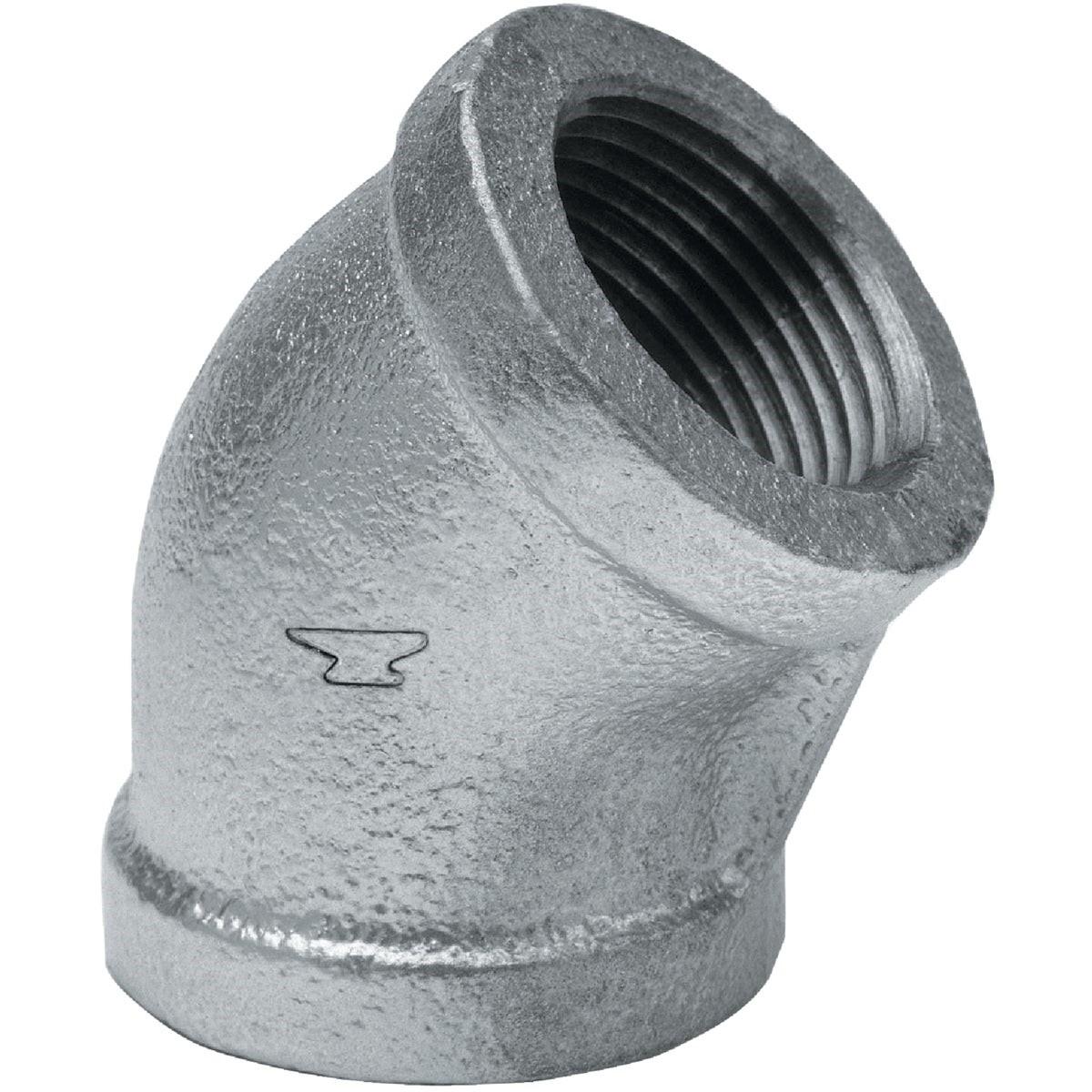

The ASC ENGINEERED SOLUTIONS 8700126801 is a 1-1/2 inch, 45-degree malleable iron elbow with a galvanized finish, also referred to as a 1/8 bend. It is a flat-banded fitting designed to change pipe direction in low-pressure piping systems. The galvanized coating provides corrosion resistance in exposed or moderately harsh environments. Manufactured to standard malleable iron fitting dimensions, this elbow is installed by licensed plumbers and pipefitters in commercial and residential piping applications. At 1.169 pounds, it is a full-weight, code-compliant fitting suited for threaded iron pipe systems.

This 45-degree elbow is used in threaded pipe assemblies where a gradual directional change is required instead of a sharp 90-degree turn. Typical applications include water supply, steam, gas distribution, and general industrial piping. The flat-banded body profile is consistent with standard catalog malleable iron fittings found throughout mechanical rooms, boiler rooms, and utility piping installations in both new construction and retrofit work.

Key Features

• 45-degree (1/8 bend) directional change for threaded iron pipe systems
• Malleable iron construction per ASTM A-197 chemical and physical property standards
• Galvanized finish for corrosion resistance in exposed piping environments
• Flat-banded body style per standard malleable iron fitting pattern
• Dimensions conform to ANSI B-16.3; pipe threads conform to ANSI B-2.1
• Meets Federal Specification WW-P-521F

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch threaded malleable iron pipe systems conforming to ANSI B-16.3 standard dimensions.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable IPC or IFGC requirements for the intended service. Shut off and depressurize the pipe system completely before disassembling or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly and tighten to a snug, leak-free fit using pipe wrenches. Do not over-torque malleable iron fittings, as the material can crack under excessive force.

Technical Specifications

• Pipe Size: 1-1/2 inches
• Fitting Angle: 45 degrees (1/8 bend)
• Material: Malleable iron
• Finish: Galvanized
• Body Style: Flat banded
• Weight: 1.169 pounds
• Dimension Standard: ANSI B-16.3
• Thread Standard: ANSI B-2.1
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• UPC: 00690291028915

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700126801
