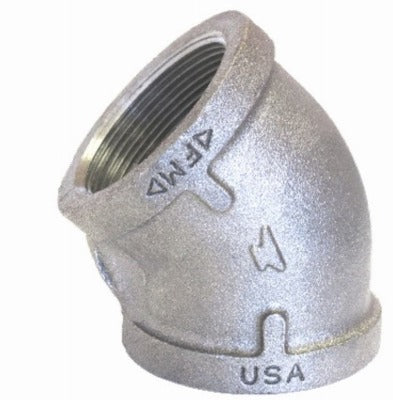

Asc Engineered Solutions 8700126439 Galvanized 45 Elbow 3in

Product Description

The ASC ENGINEERED SOLUTIONS 8700126439 is a 3-inch, 45-degree galvanized malleable iron elbow rated at 150 class. It is used to change pipe direction at a 45-degree angle in threaded piping systems. This domestically sourced fitting is standard inventory for licensed plumbers and pipefitters working on water distribution, general industrial piping, and mechanical systems. The 150 class pressure rating makes it suitable for a wide range of low-to-moderate pressure applications in both commercial and residential settings.

This elbow is designed for use in threaded galvanized pipe assemblies where directional changes are required without a full 90-degree turn. It is commonly installed in water supply lines, fire protection rough-in, and mechanical room piping. The galvanized finish provides corrosion resistance for wet or humid environments. Licensed plumbers and pipefitters are the primary installers of this type of fitting in both new construction and retrofit projects.

Key Features

• 45-degree elbow angle for moderate directional change in piping runs
• 3-inch nominal pipe size for high-flow applications
• 150 class pressure rating suitable for standard service conditions
• Galvanized finish provides corrosion resistance in wet environments
• Domestically sourced construction
• Threaded connection type for standard installation with pipe wrenches

Compatibility

Designed as an OEM-style replacement and standard fitting for 3-inch threaded galvanized pipe systems rated at 150 class service conditions.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable plumbing codes such as the IPC. Shut off and depressurize the piping system completely before removing or installing any threaded fittings. Apply thread sealant or PTFE tape to male threads before assembly and tighten to a leak-free fit using appropriate pipe wrenches. Do not over-torque, as this can crack or distort threaded connections.

Technical Specifications

• Nominal Pipe Size: 3 inches
• Elbow Angle: 45 degrees
• Pressure Class: 150
• Finish: Galvanized
• Origin: Domestic
• Weight: 18.4 pounds
• Package Quantity: 4 per package
• Unit of Measure: EA

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700126439
