Asc Engineered Solutions 8700124608 Reducing Iron Elbow

Product Description

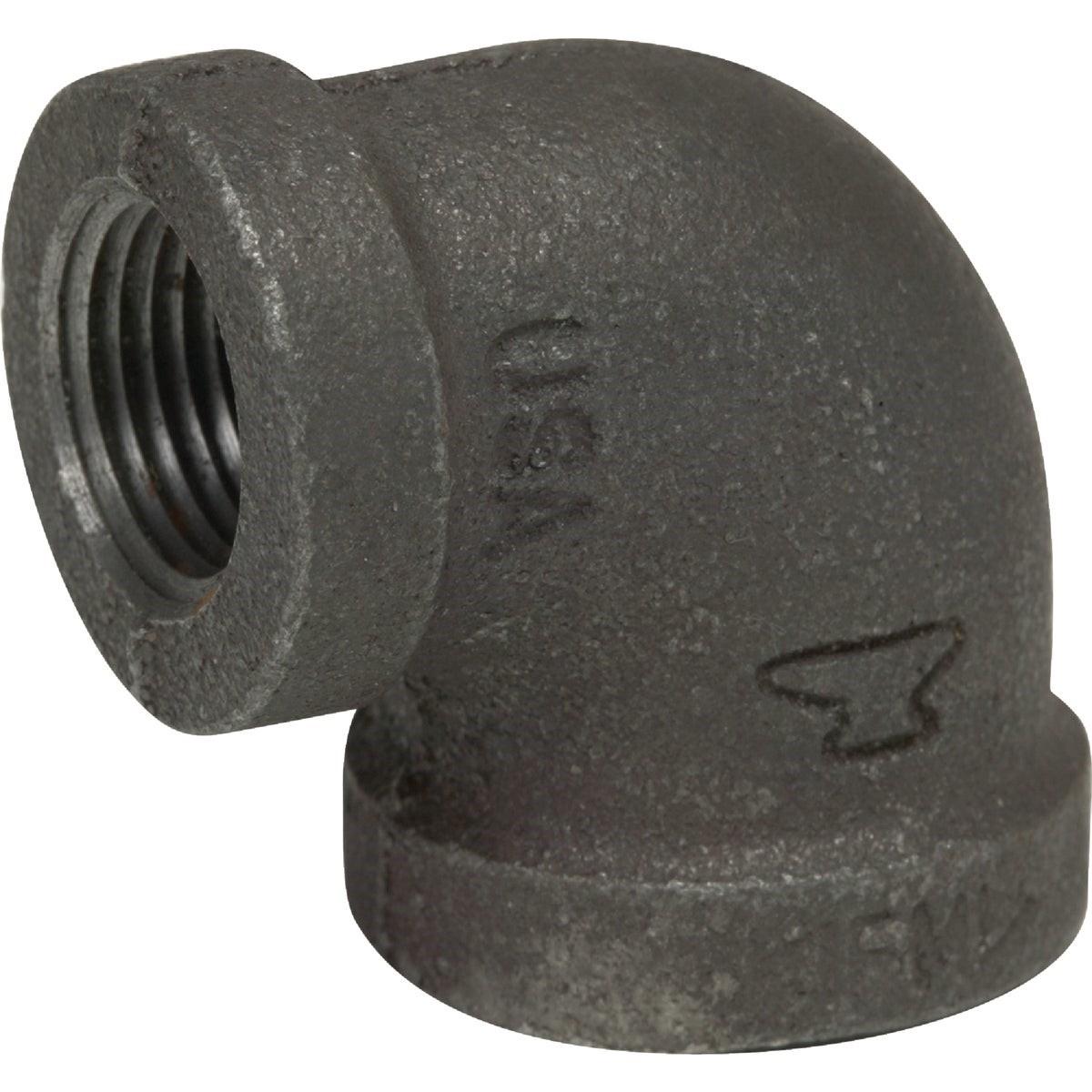

The ASC Engineered Solutions 8700124608 is a 90-degree reducing malleable black iron elbow, also referred to as a 1/4 bend, designed for threaded pipe systems in gas, steam, and water distribution applications. This fitting reduces from a 3/4-inch female thread on the run to a 1/2-inch female thread on the outlet, allowing directional changes and pipe size transitions in a single fitting. Manufactured from malleable iron with a flat banded body, it meets Federal Specification WW-P-521F, ANSI B-16.3 dimensional standards, ANSI B-2.1 pipe thread specifications, and ASTM A-197 chemical and physical property requirements. Licensed plumbers and pipefitters install this fitting in both new construction and retrofit piping work.

This elbow is used in residential and light commercial piping systems where a 90-degree change of direction is needed alongside a reduction in pipe diameter. Common applications include gas distribution piping, steam lines, hydronic heating systems, and general water service lines. Its black iron finish makes it suitable for gas service where galvanized fittings are not permitted. The flat banded design provides a clean surface for identification and handling in the field.

Key Features

• 90-degree elbow with 3/4-inch to 1/2-inch reduction in a single fitting
• Malleable iron construction for strength and resistance to shock loading
• Flat banded body for easy identification and secure handling
• Meets ANSI B-16.3 dimensional and ANSI B-2.1 pipe thread standards
• Complies with ASTM A-197 chemical and physical property requirements
• Black iron finish suitable for gas piping applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard threaded malleable iron piping systems using 3/4-inch and 1/2-inch NPT connections.

Installation Notes

Installation is performed by licensed plumbers or pipefitters in accordance with applicable local codes and the International Fuel Gas Code or International Plumbing Code. Shut off and depressurize the pipe system completely before removing or installing any fittings. Apply an approved thread sealant or PTFE tape to all male threads before assembly. Do not over-tighten threaded connections; hand-tighten and finish with a pipe wrench to the appropriate engagement without stressing the fitting body.

Technical Specifications

• Material: Malleable Iron
• Finish: Black Iron
• Body Style: Flat Banded
• Angle: 90 Degrees (1/4 Bend)
• Inlet Size: 3/4 inches (female NPT)
• Outlet Size: 1/2 inches (female NPT)
• Weight: 0.39 pounds
• Standard: Fed. Spec. WW-P-521F, ANSI B-16.3, ANSI B-2.1, ASTM A-197

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700124608
