Asc Engineered Solutions 8700124350 90 Degree Elbow 1-1/2 in

Product Description

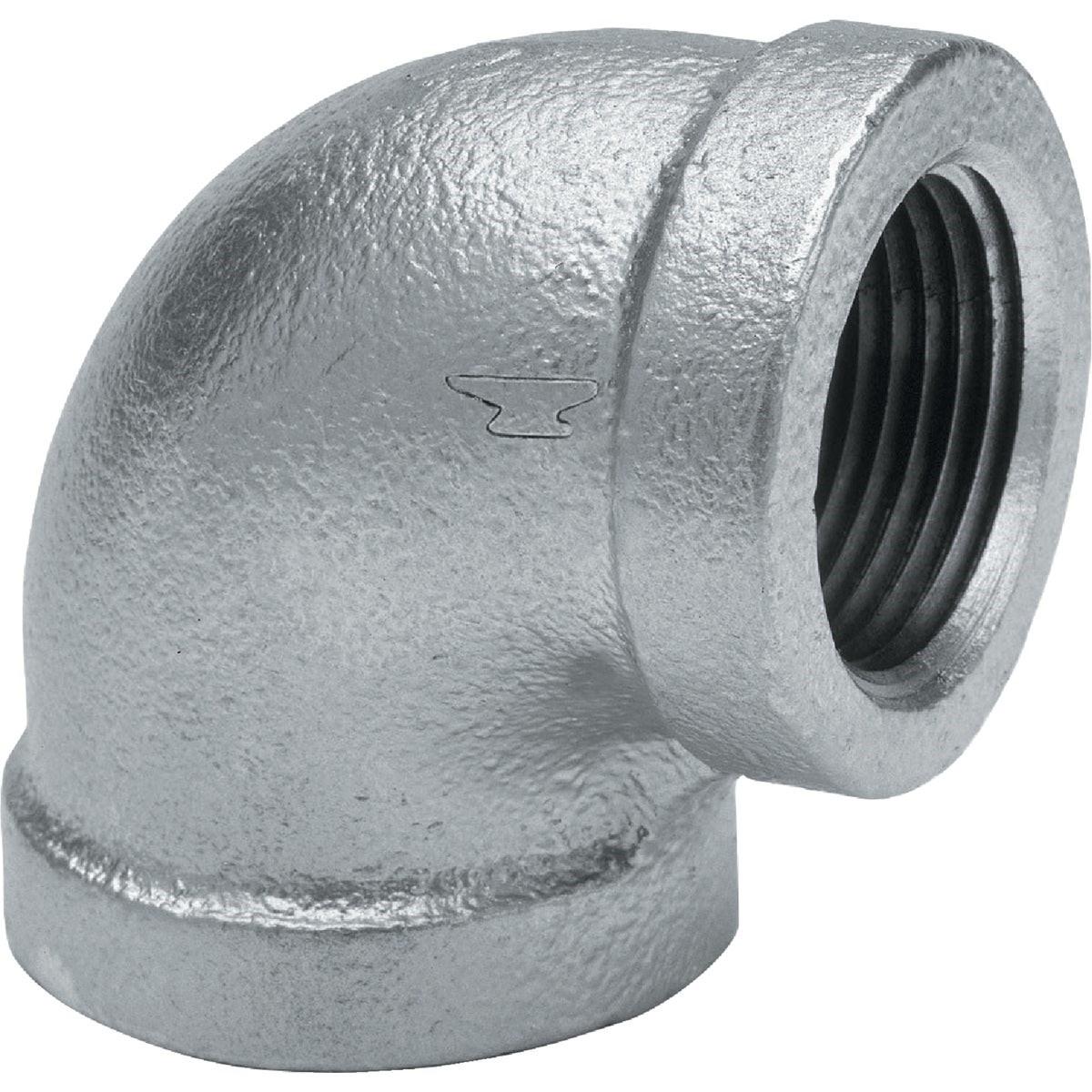

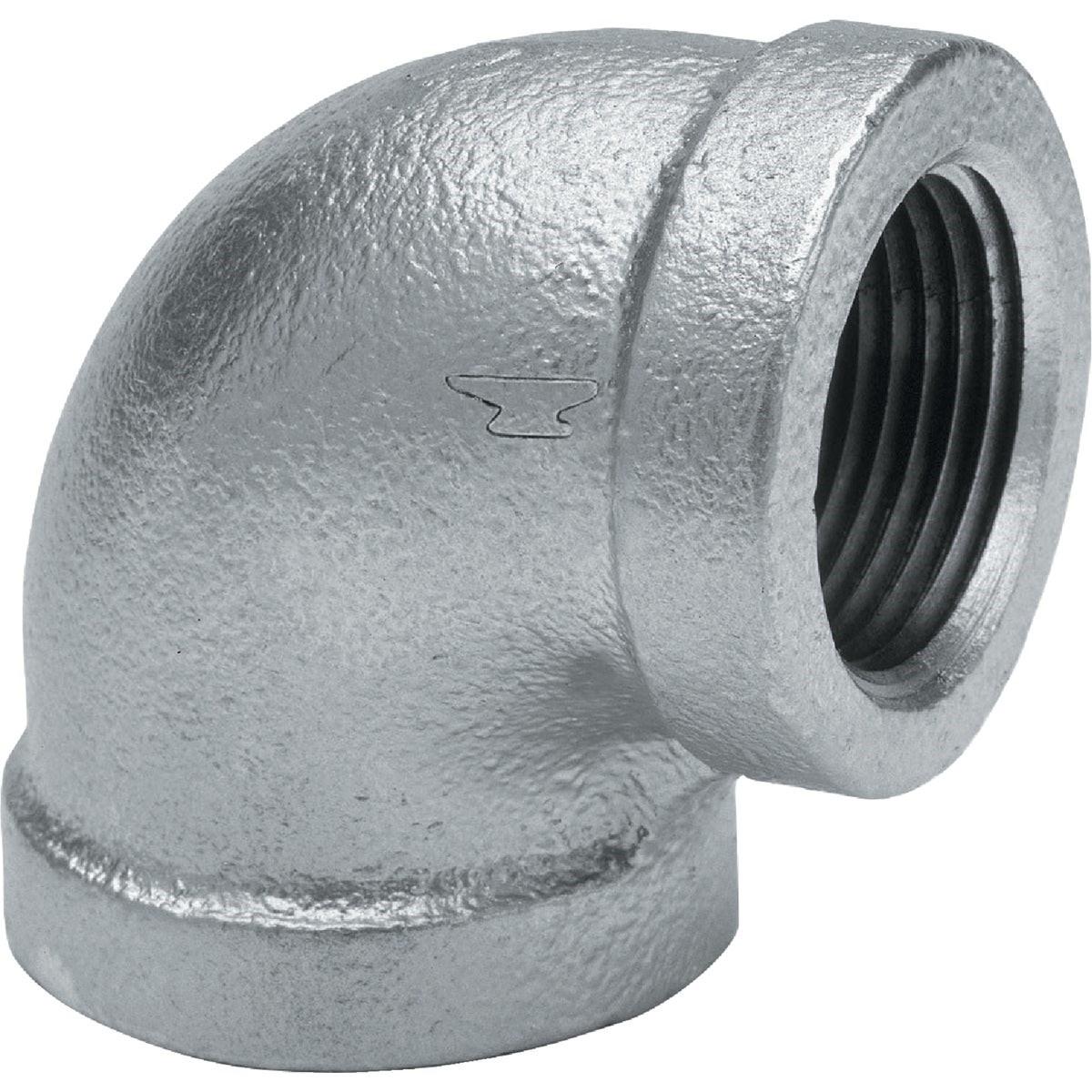

The ASC Engineered Solutions 8700124350 is a 1-1/2 inch malleable iron 90 degree elbow, also referred to as a 1/4 bend, used to redirect pipe runs at a right angle in threaded piping systems. The fitting is flat banded and conforms to ANSI B-16.3 dimensional standards with ANSI B-2.1 tapered pipe threads. At 1.375 pounds, this is a standard-weight fitting appropriate for plumbing, mechanical, and fire protection piping. It is sold individually. Licensed plumbers and pipefitters select malleable iron fittings for their durability and compatibility with standard threaded pipe assemblies in both new construction and retrofit applications.

This elbow is suited for use in residential and light commercial piping systems where a 90 degree directional change is required. Typical installations include steam, water, gas, and air distribution lines within the working pressure ratings of standard malleable iron fittings. The flat banded design indicates standard wall construction per the governing specifications.

Key Features

• 90 degree elbow (1/4 bend) for right-angle pipe direction changes
• 1-1/2 inch nominal pipe size with ANSI B-2.1 threaded connections
• Malleable iron construction per ASTM A-197 chemical and physical property requirements
• Flat banded body per ANSI B-16.3 dimensional standard
• Complies with Federal Specification WW-P-521F
• Sold as individual unit

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 1-1/2 inch threaded malleable iron piping systems conforming to ANSI B-16.3 and ANSI B-2.1 specifications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local mechanical and plumbing codes. Shut off and depressurize the system before removing or threading any fittings. Apply appropriate thread sealant or PTFE tape to male threads before assembly, and tighten to a wrench-tight engagement without over-torquing the malleable iron body. Inspect threads for damage before installation.

Technical Specifications

• Material: Malleable Iron
• Nominal Pipe Size: 1-1/2 inches
• Angle: 90 degrees (1/4 Bend)
• Body Style: Flat Banded
• Thread Standard: ANSI B-2.1
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Weight: 1.375 pounds
• Sold As: Each
• UPC: 00690291028304

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700124350
