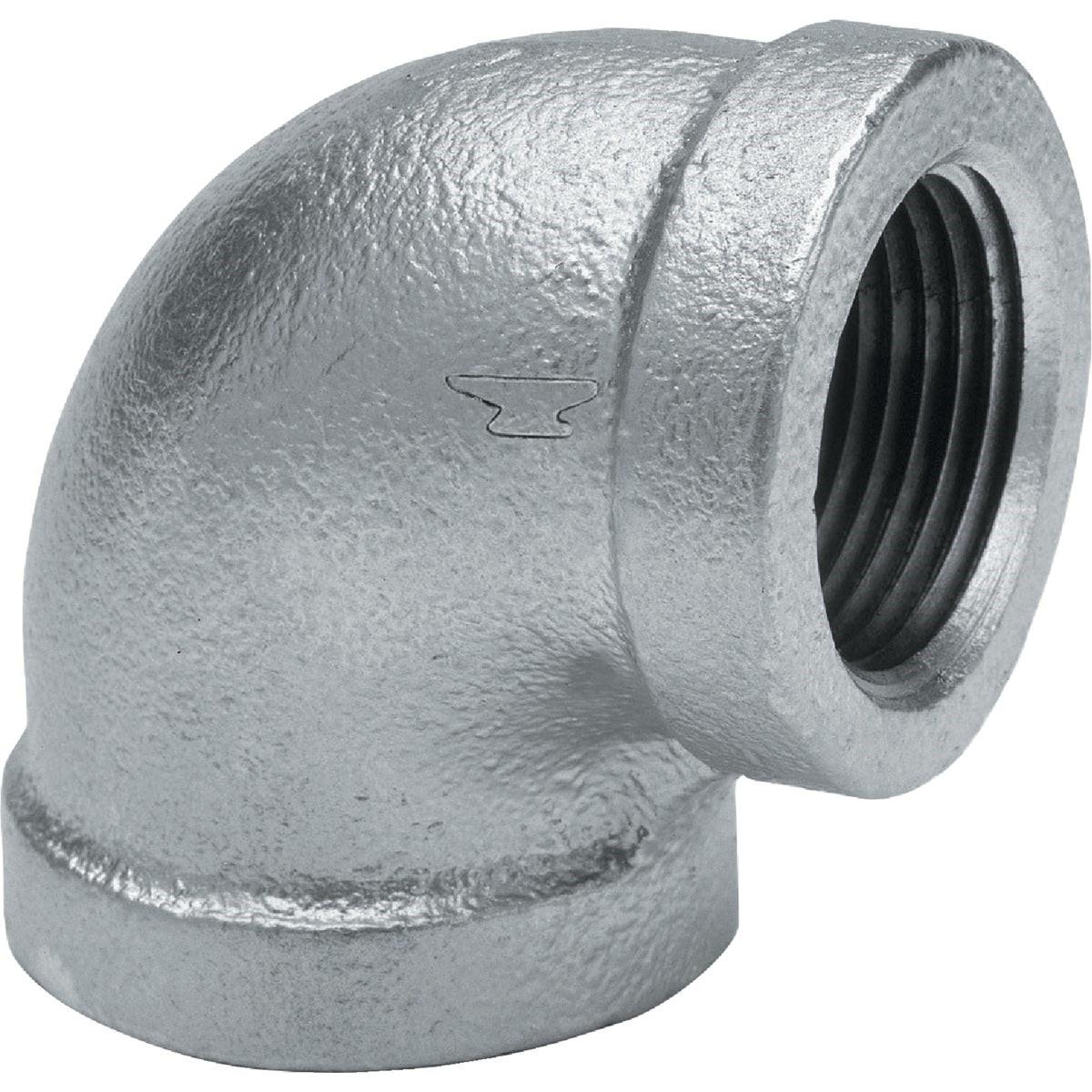

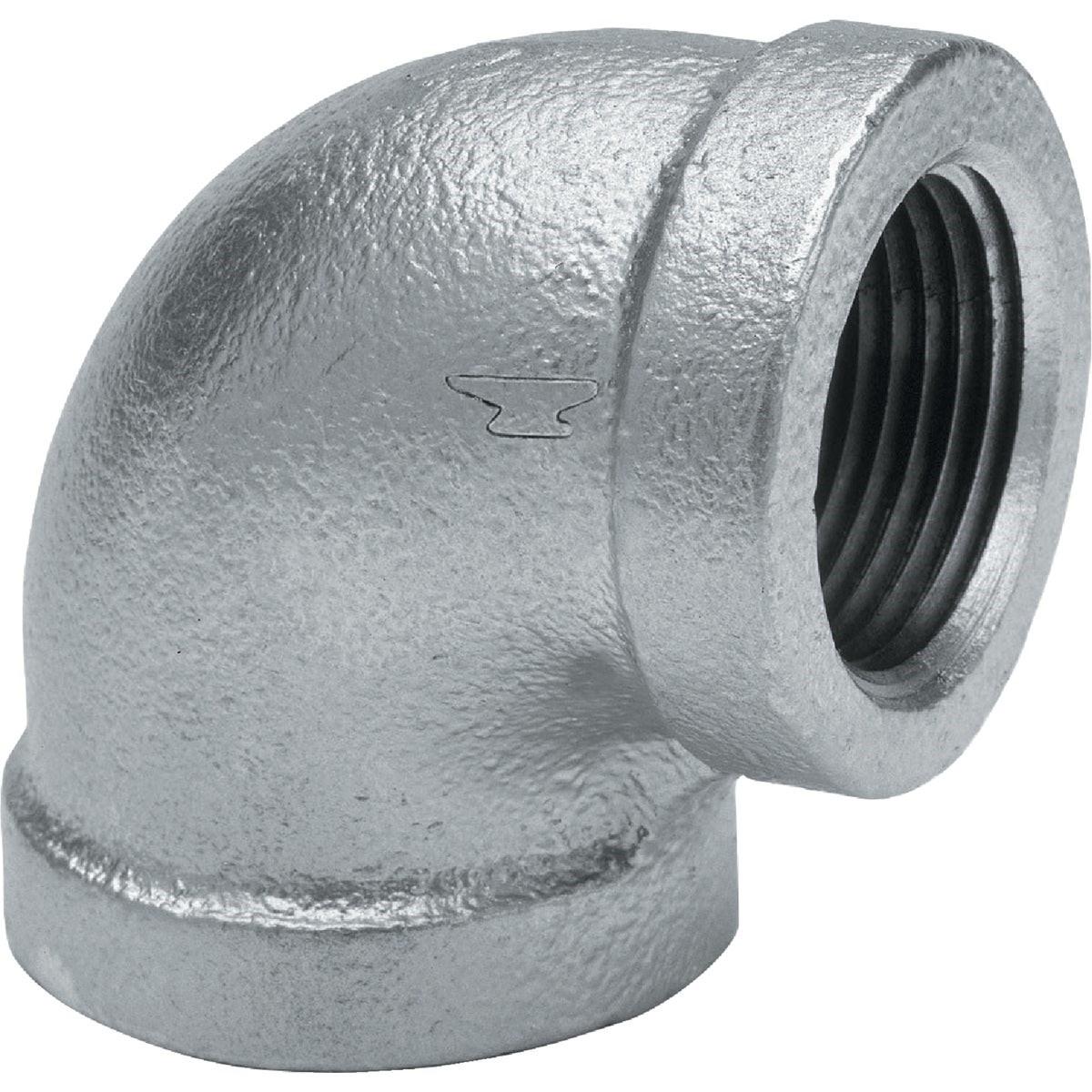

Asc Engineered Solutions 8700124301 Malleable Iron 90 Degree Elbow

Product Description

The ASC Engineered Solutions 8700124301 is a 1-1/4 inch malleable iron 90 degree elbow, also referred to as a 1/4 bend, used to change pipe direction in threaded piping systems. Constructed from malleable iron meeting ASTM A-197 chemical and physical property standards, this flat banded elbow is dimensioned to ANSI B-16.3 and threaded to ANSI B-2.1 specifications. It also conforms to Federal Specification WW-P-521F. Licensed plumbers and pipefitters install this fitting in commercial and residential systems where a reliable, code-conforming directional change in a threaded iron pipe run is required.

This elbow is suited for use in water distribution, fire protection, and general industrial piping systems where malleable iron threaded fittings are the specified material. The 1-1/4 inch size is a common mainline diameter in commercial plumbing headers and branch supply runs. The flat banded body style is standard for this class of fitting and is compatible with NPT-threaded pipe in both new construction and retrofit installations.

Key Features

• 90 degree directional change in a single fitting, eliminating the need for additional offsets
• Malleable iron construction per ASTM A-197 for ductility and impact resistance in threaded systems
• Flat banded body style — standard profile for Class 150 malleable iron fittings
• Dimensions per ANSI B-16.3 and pipe threads per ANSI B-2.1 for consistent fit with standard NPT pipe
• Meets Federal Specification WW-P-521F

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/4 inch NPT threaded malleable iron piping systems in accordance with ANSI B-16.3 dimensional standards.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off and depressurize the piping system fully before cutting into an existing line. Apply an approved pipe thread sealant or PTFE tape to male threads before assembly. Do not over-tighten; malleable iron fittings can crack under excessive torque from power tools without proper technique.

Technical Specifications

• Material: Malleable Iron
• Pipe Size: 1-1/4 inches
• Angle: 90 degrees
• Body Style: Flat Banded
• Thread Standard: ANSI B-2.1 (NPT)
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Weight: 0.99 pounds
• Sold As: Each

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700124301
