Asc Engineered Solutions 8700124202 3/4 in Galvanized 90 Deg Elbow

Product Description

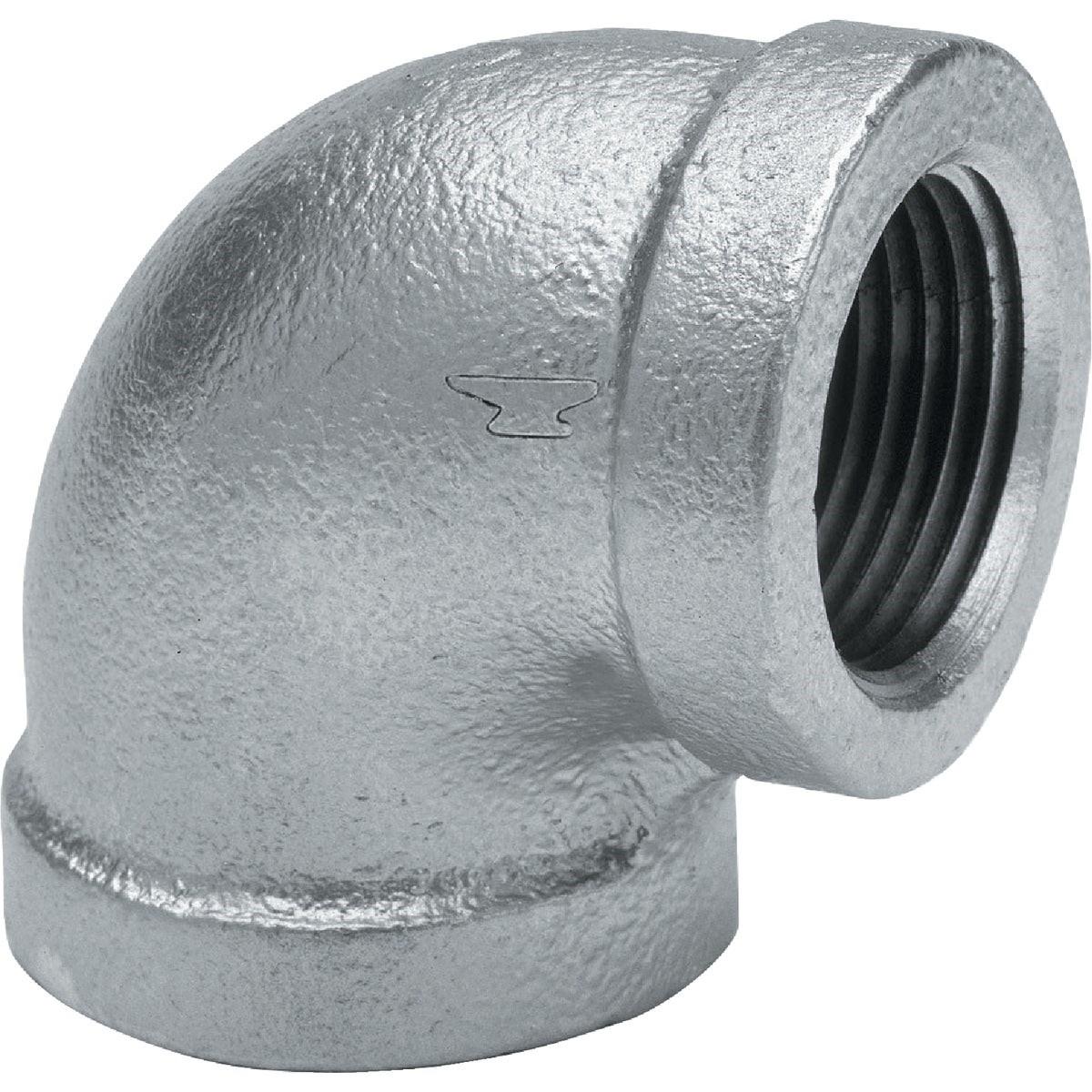

The ASC ENGINEERED SOLUTIONS 8700124202 is a 3/4-inch 90-degree galvanized malleable iron elbow, also known as a quarter bend, used to change pipe direction in threaded piping systems. Constructed from malleable iron with a galvanized finish, this flat-banded fitting meets Federal Specification WW-P-521F, ANSI B-16.3 for dimensions, ANSI B-2.1 for pipe threads, and ASTM A-197 for chemical and physical properties. It is sold individually and is a standard component in commercial and residential piping installations handled by licensed plumbers and pipefitters.

This fitting is suited for use in water supply, fire protection, and mechanical piping systems where a threaded 90-degree directional change is required at a 3/4-inch pipe size. The galvanized coating provides corrosion resistance appropriate for wet or exposed service environments. It is a direct-connect threaded fitting designed for use with standard NPT pipe threads, making it straightforward to install in new construction or retrofit applications.

Key Features

• 90-degree quarter bend configuration for threaded directional changes
• Galvanized malleable iron construction for corrosion resistance
• Flat banded design conforming to standard malleable iron fitting profile
• Meets ANSI B-16.3 dimensional standards and ANSI B-2.1 pipe thread specifications
• ASTM A-197 compliant for chemical and physical material properties
• Federal Specification WW-P-521F listed

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 3/4-inch NPT threaded piping systems in residential and commercial mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC or local plumbing codes. Shut off and depressurize the supply line before making any connections. Apply appropriate thread sealant or PTFE tape to NPT threads before assembly. Do not overtighten, as malleable iron fittings can crack if excessive torque is applied.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized
• Pipe Size: 3/4 inch
• Angle: 90 degrees
• Thread Standard: ANSI B-2.1 NPT
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Weight: 0.43 pounds
• Sold As: Each

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700124202
