Asc Engineered Solutions 8700124152 Galvanized Elbow 1/2 in

Product Description

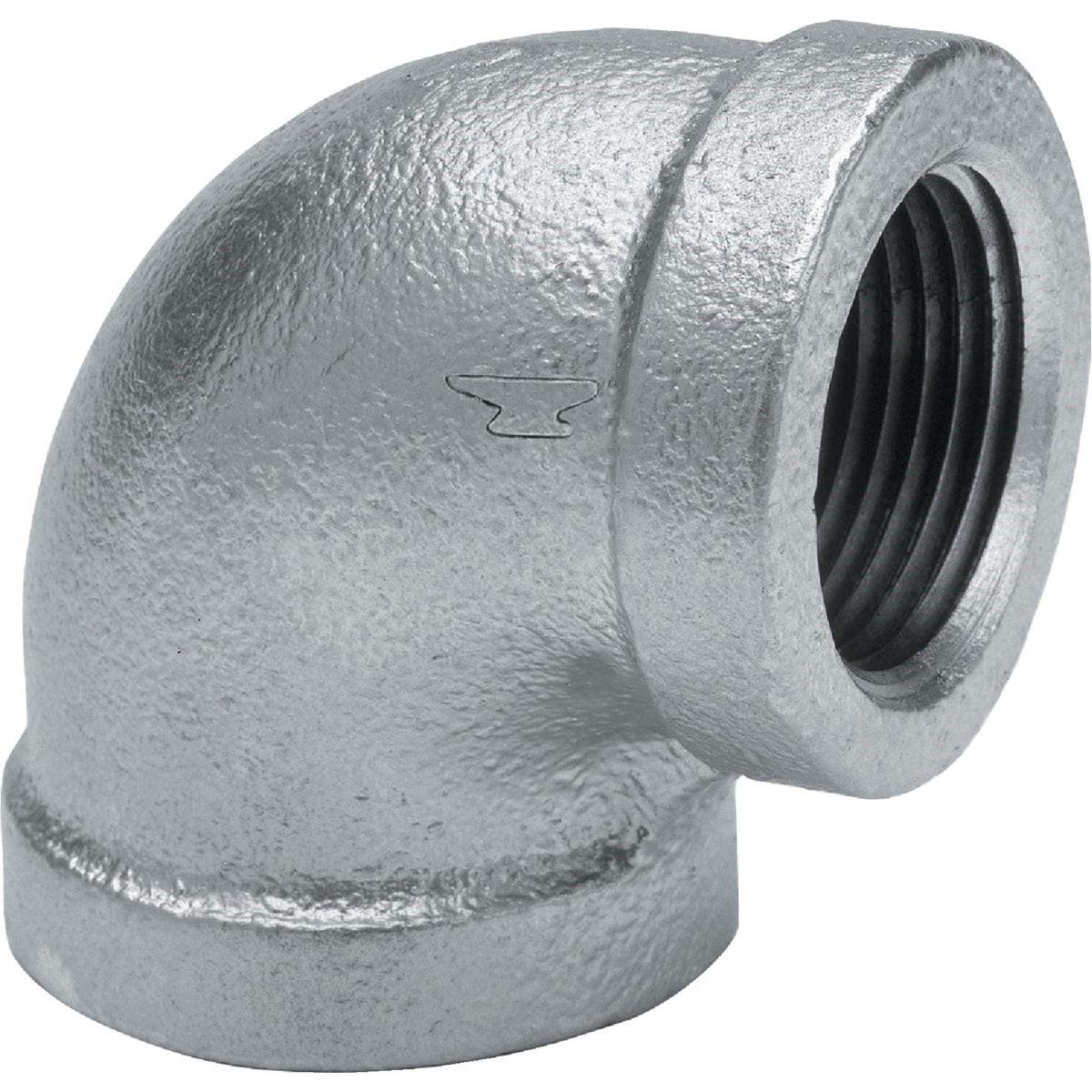

The ASC ENGINEERED SOLUTIONS 8700124152 is a 1/2 inch, 90-degree malleable iron elbow with a galvanized finish, commonly referred to as a 1/4 bend fitting. It is used to change pipe direction in threaded piping systems and features a flat banded body construction. Manufactured from malleable iron to ASTM A-197 standards for chemical and physical properties, this fitting is built for dependable performance in standard piping installations. It is sized for 1/2 inch pipe and conforms to ANSI B-16.3 dimensional standards and ANSI B-2.1 pipe thread specifications. Licensed plumbers and pipefitters are the typical installers for this type of fitting.

This 90-degree elbow is suited for residential and light commercial plumbing, HVAC piping, and general mechanical systems where threaded iron pipe is specified. The galvanized finish provides corrosion resistance appropriate for dry or mildly humid environments. It is well-suited for water supply lines, gas distribution piping, and similar low-pressure threaded pipe applications where malleable iron fittings meet code requirements.

Key Features

• 90-degree directional change in a compact 1/4 bend profile
• Malleable iron construction per ASTM A-197 for reliable mechanical strength
• Galvanized finish for corrosion resistance in typical piping environments
• Flat banded body design
• Conforms to Federal Specification WW-P-521F
• Threaded connections per ANSI B-2.1 pipe thread standard

Compatibility

Designed as an OEM-style replacement or standard-use fitting for 1/2 inch threaded malleable iron piping systems in residential and commercial mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code. Shut off and depressurize the pipe system before removing or installing any threaded fittings. Use an appropriate pipe thread sealant or PTFE tape on all male threads before assembly. Do not overtighten threaded connections, as malleable iron fittings can crack under excessive torque.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized
• Pipe Size: 1/2 inch
• Bend Angle: 90 degrees (1/4 Bend)
• Body Style: Flat Banded
• Thread Standard: ANSI B-2.1
• Dimensional Standard: ANSI B-16.3
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• Weight: 0.31 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700124152
