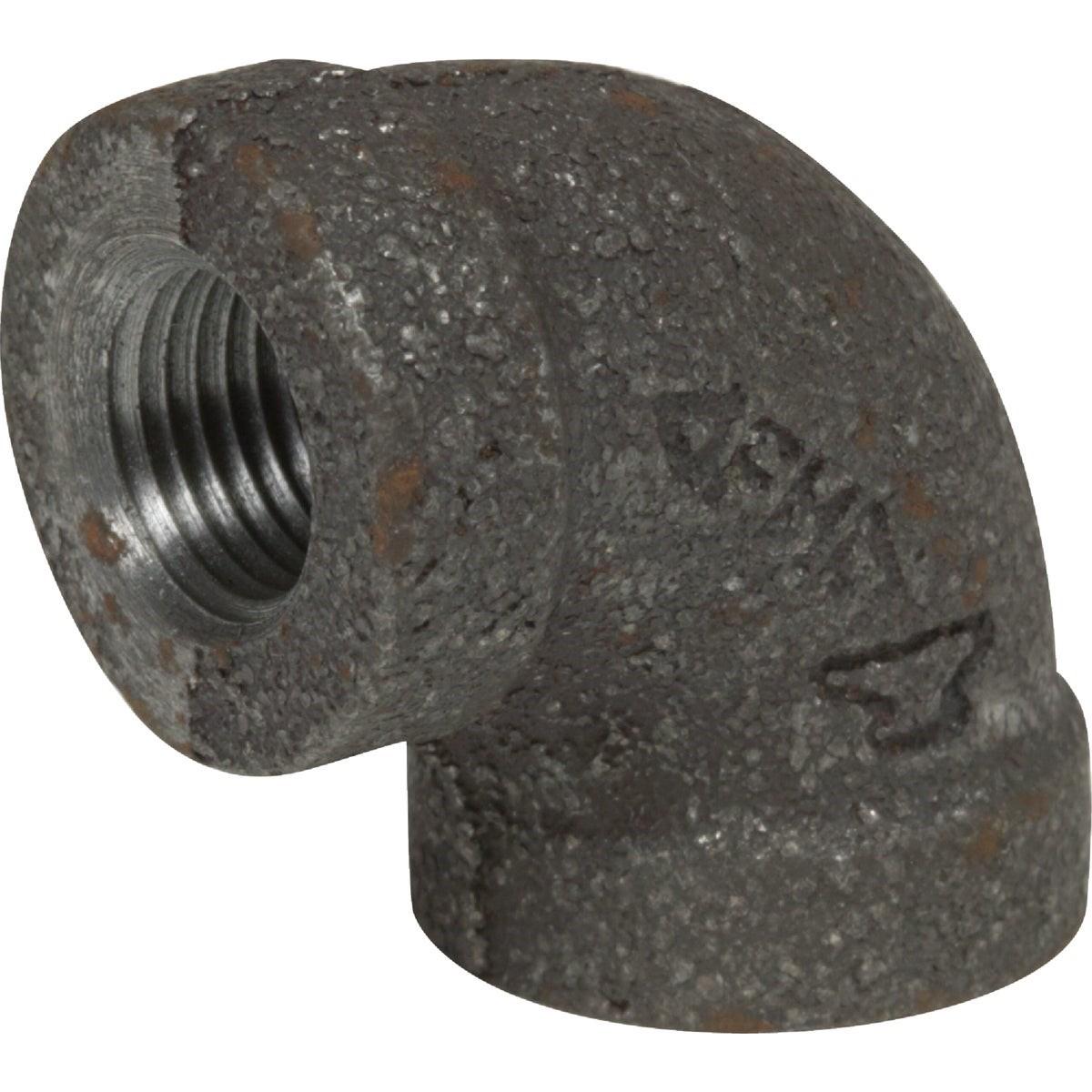

Asc Engineered Solutions 8700123808 Black Iron 90 Elbow 1 in

Product Description

The ASC Engineered Solutions 8700123808 is a 1-inch 90-degree malleable black iron elbow, also referred to as a quarter bend, used to change pipe direction in threaded black iron piping systems. Constructed from malleable iron to ASTM A-197 standards, this fitting features a flat-banded body and conforms to ANSI B-16.3 dimensional standards and ANSI B-2.1 pipe thread specifications. It is sold individually and weighs 0.72 pounds. Plumbers, pipefitters, and mechanical contractors install this type of fitting in gas distribution, steam, and hydronic heating systems where durable, code-compliant threaded connections are required.

This elbow is suited for residential and light commercial applications involving threaded black iron pipe systems. Typical uses include natural gas supply lines, propane distribution, steam heating, and industrial pipe runs where a 90-degree direction change is needed. The flat-banded design is standard for this class of malleable iron fitting and is widely used in new construction and retrofit work across mechanical and plumbing trades.

Key Features

• 90-degree quarter bend provides a full right-angle direction change in threaded pipe runs
• Malleable iron construction meets ASTM A-197 chemical and physical property requirements
• Flat-banded body profile conforms to ANSI B-16.3 dimensional standards
• ANSI B-2.1 compliant pipe threads ensure consistent fit with standard NPT threaded pipe
• Meets Federal Specification WW-P-521F for malleable iron pipe fittings
• Sold individually with no minimum order quantity beyond one unit

Compatibility

Designed as an OEM-style replacement and new-installation fitting for standard 1-inch threaded black iron pipe systems conforming to ANSI B-16.3 and ANSI B-2.1 thread specifications.

Installation Notes

Installation is performed by licensed plumbers or pipefitters. Shut off and depressurize the pipe system completely before removing or installing any threaded fittings. Apply an approved thread sealant or PTFE tape to male threads before assembly, and tighten to a secure, leak-free connection using pipe wrenches. On gas piping systems, all work must comply with applicable local codes and IFGC requirements, and a pressure test should be performed after assembly.

Technical Specifications

• Material: Malleable Iron
• Pipe Size: 1 inch
• Angle: 90 degrees
• Body Style: Flat Banded
• Weight: 0.72 pounds
• Dimensional Standard: ANSI B-16.3
• Thread Standard: ANSI B-2.1
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• UPC: 00690291023040

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700123808
