Asc Engineered Solutions 8700121109 Galvanized Tee 1-1/2 in

Product Description

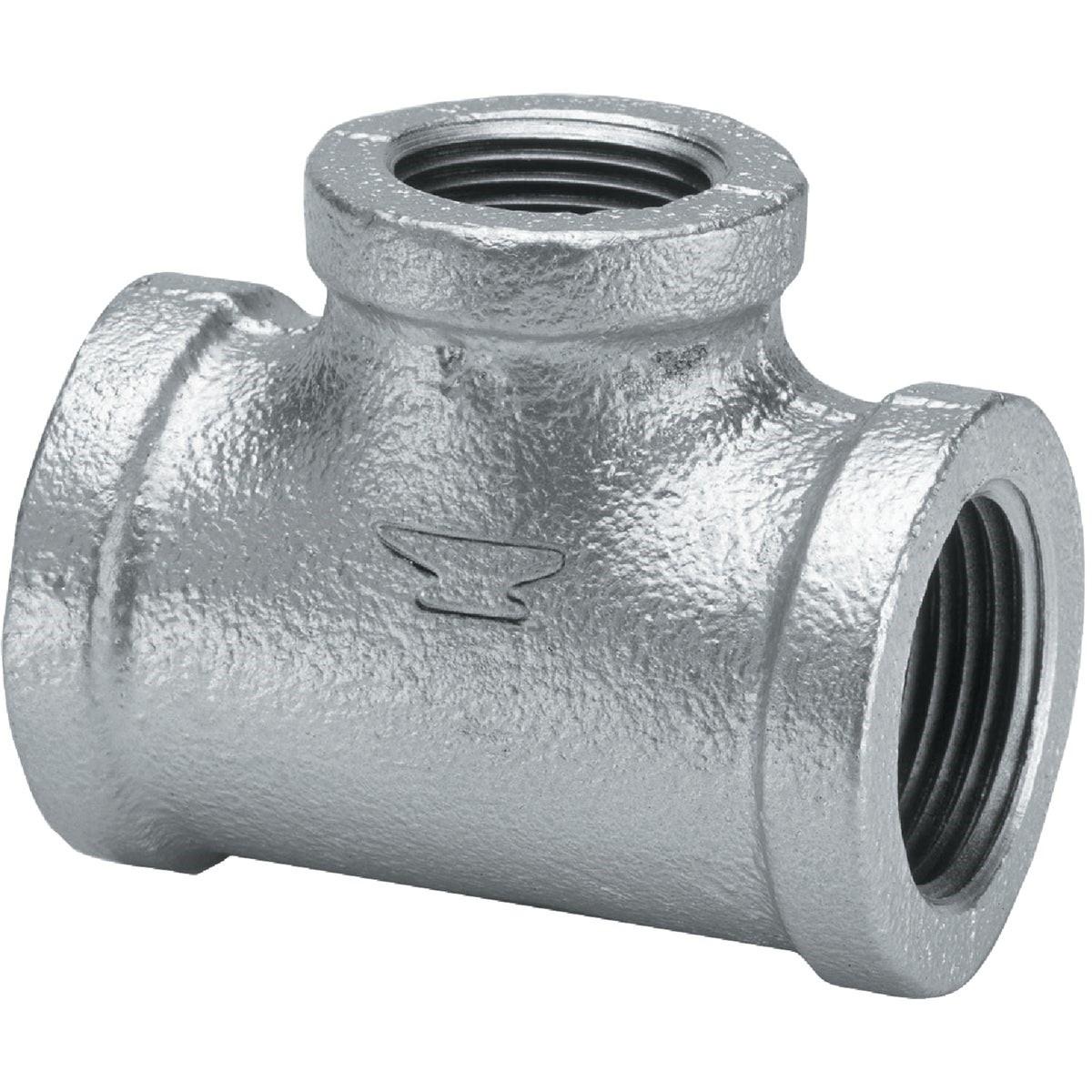

The ASC ENGINEERED SOLUTIONS 8700121109 is a 1-1/2 inch malleable iron galvanized tee fitting used in threaded pipe systems across plumbing, mechanical, and fire protection applications. Constructed from malleable iron with a hot-dip galvanized finish, this flat-banded tee meets the dimensional and material standards required for commercial and industrial pipe installations. It provides a threaded branch connection at 90 degrees from the run, allowing a straight-through flow path while routing fluid or gas to a perpendicular outlet. Licensed plumbers and pipefitters install this fitting in new construction and retrofit work where corrosion resistance and mechanical durability are required.

This fitting is suited for residential and commercial threaded pipe systems carrying water, steam, or approved gases. The galvanized coating makes it appropriate for wet or damp environments where bare iron would corrode. It is commonly used in water distribution, HVAC hydronic piping, compressed air lines, and general mechanical service. The flat-banded body style provides wrench flats for secure makeup with standard pipe wrenches.

Key Features

• 1-1/2 inch nominal pipe size threaded tee configuration
• Malleable iron construction for strength and impact resistance in threaded applications
• Galvanized finish provides corrosion protection in wet and damp service environments
• Flat-banded body style allows positive wrench engagement during installation
• Meets Fed. Spec. WW-P-521F, ANSI B-16.3 dimensional standards, ANSI B-2.1 pipe thread standards, and ASTM A-197 chemical and physical property requirements

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 1-1/2 inch NPT threaded malleable iron pipe systems in plumbing and mechanical service.

Installation Notes

Installation is performed by a licensed plumber or pipefitter using standard pipe wrenches and appropriate thread sealant or PTFE tape rated for the service media. Shut off and depressurize the system completely before removing or installing any threaded fitting. Avoid over-tightening, which can crack the fitting hub. Installations must comply with applicable local plumbing codes and ANSI or ASTM standards referenced for this fitting.

Technical Specifications

• Nominal Pipe Size: 1-1/2 inches
• Material: Malleable Iron
• Finish: Galvanized
• Body Style: Flat Banded
• Weight: 1.8 pounds
• Dimensional Standard: ANSI B-16.3
• Thread Standard: ANSI B-2.1
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F
• UPC: 00690291029158

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 8700121109
