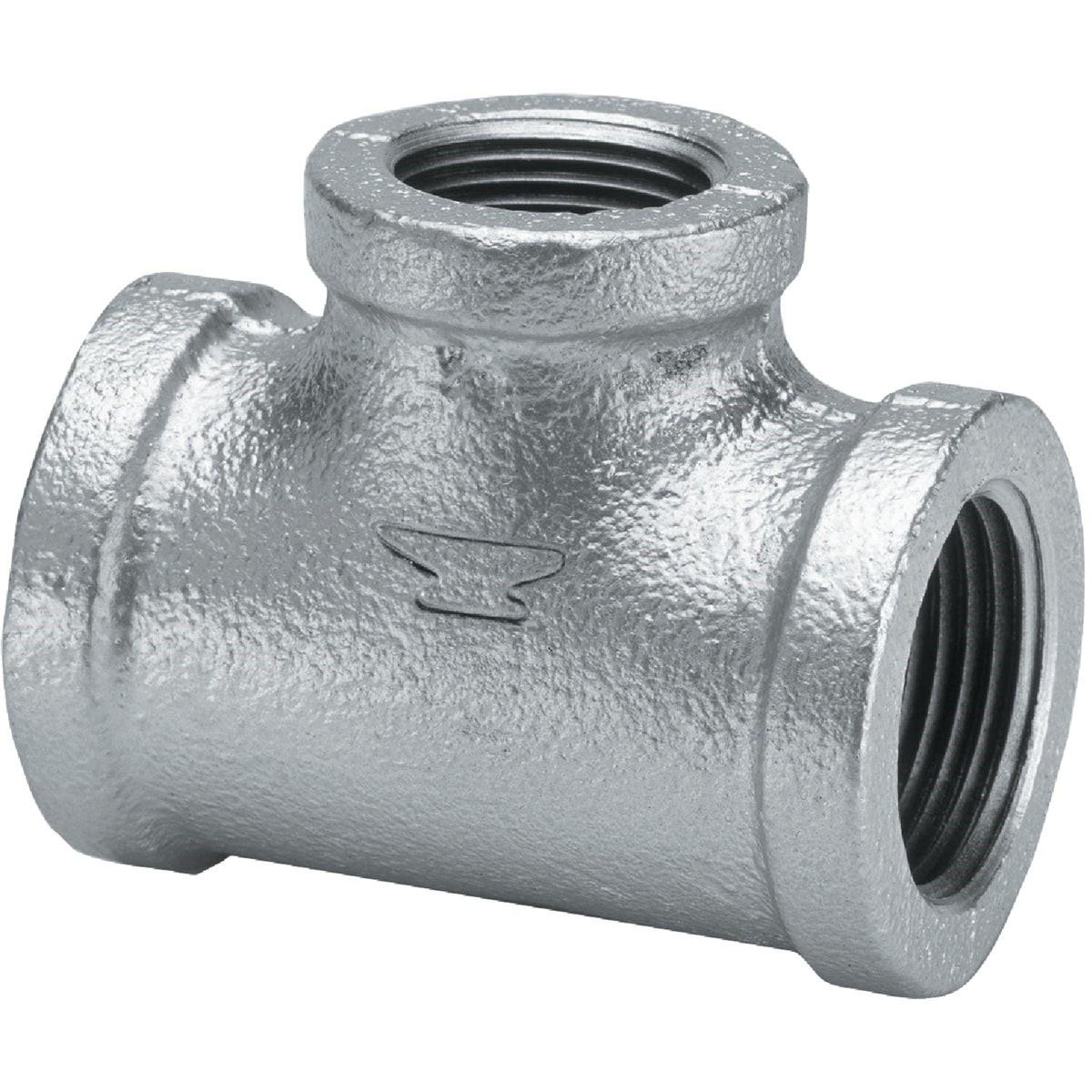

Asc Engineered Solutions 8700120754 Galvanized Tee 1/8 in

Product Description

The ASC Engineered Solutions 8700120754 is a 1/8 inch malleable iron galvanized tee fitting designed for threaded pipe systems. It features a flat banded body and conforms to Federal Specification WW-P-521F, ANSI B-16.3 for dimensions, ANSI B-2.1 for pipe threads, and ASTM A-197 for chemical and physical properties. This fitting is used to create branch connections in low-pressure piping systems and is a standard component in plumbing, HVAC, and industrial piping work. Licensed plumbers and pipefitters are the typical installers. The galvanized finish provides corrosion resistance for use in a range of service environments.

This tee is suited for residential and light commercial threaded pipe installations where a 1/8 inch branch connection is required. It is commonly used in gas distribution piping, water supply lines, compressed air systems, and steam or condensate piping that fall within the pressure and temperature ratings for standard malleable iron fittings. Its compact size makes it appropriate for instrumentation takeoffs and pilot line connections in mechanical systems.

Key Features

• Malleable iron construction meets ASTM A-197 chemical and physical property requirements
• Galvanized finish for corrosion resistance in wet or humid service environments
• Flat banded body design consistent with standard malleable iron fitting patterns
• Dimensions per ANSI B-16.3 and pipe threads per ANSI B-2.1
• Meets Federal Specification WW-P-521F

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 1/8 inch NPT threaded pipe systems in plumbing, HVAC, and industrial piping applications.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter. Shut off and depressurize the piping system fully before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to male threads per local plumbing code requirements, referencing IPC or IFGC as applicable to the service. Do not over-tighten, as malleable iron fittings can crack if excessive torque is applied.

Technical Specifications

• Material: Malleable Iron
• Finish: Galvanized
• Size: 1/8 inch
• Body Style: Flat Banded
• Weight: 0.1 pounds
• Dimension Standard: ANSI B-16.3
• Thread Standard: ANSI B-2.1
• Material Standard: ASTM A-197
• Federal Specification: WW-P-521F

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 8700120754
