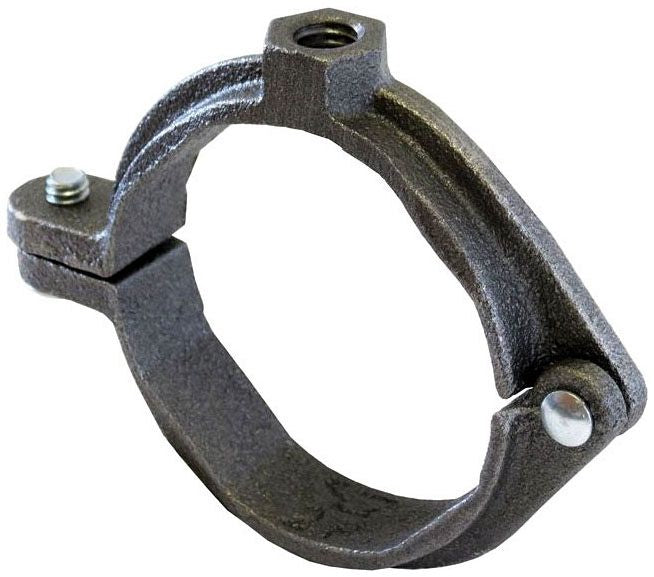

Asc Engineered Solutions 560500258 Split Ring Hanger

Product Description

The ASC Engineered Solutions 560500258 is a 2-1/2 inch galvanized split ring hanger designed to support pipe in suspended piping systems. Constructed from carbon steel with a galvanized finish, this hanger accepts a 1/2 inch threaded rod and provides reliable pipe support in both commercial and residential mechanical installations. Plumbers, pipefitters, and mechanical contractors install these hangers to secure horizontal pipe runs from overhead structural members. The galvanized finish offers corrosion resistance suitable for standard indoor and moderately humid environments.

This split ring hanger is used in suspended piping applications where pipe must be supported at regular intervals from above. It is well suited for copper, steel, and other rigid pipe in plumbing, HVAC hydronic, and general mechanical piping systems. The 2-1/2 inch pipe size and 1/2 inch rod compatibility make it a standard choice for mid-size pipe support in building mechanical rooms, ceiling plenum spaces, and overhead utility runs.

Key Features

• Supports 2-1/2 inch pipe from 1/2 inch threaded rod
• Carbon steel construction with galvanized finish for corrosion resistance
• Split ring design allows installation around existing pipe without disassembly of the run
• Lightweight at 0.60 pounds per unit for easy handling and installation overhead

Compatibility

Designed as an OEM-style replacement and standard-fitment split ring hanger for 2-1/2 inch pipe suspended on 1/2 inch threaded rod in commercial and residential mechanical piping systems.

Installation Notes

Pipe hangers of this type are typically installed by licensed plumbers or pipefitters following IPC and IFGC spacing requirements for the pipe material and fluid being carried. Before installing or repositioning hangers on an active system, isolate and drain the affected pipe section as required. Ensure the threaded rod and overhead anchor are rated for the combined load of the pipe, fluid, and hanger. Do not overtighten the split ring closure, as this can deform the hanger and create stress points on the pipe.

Technical Specifications

• Pipe Size: 2-1/2 inches
• Rod Size: 1/2 inch
• Type: Split Ring Hanger
• Material: Carbon Steel
• Finish: Galvanized
• Weight: 0.60 pounds per unit

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 560500258
