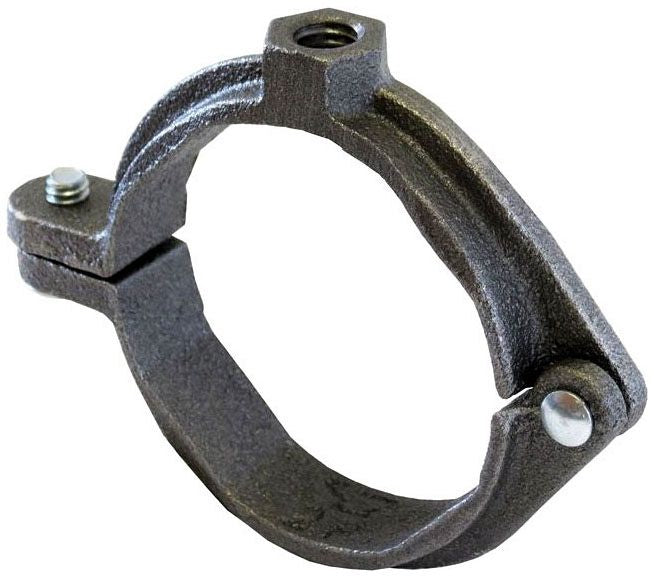

Asc Engineered Solutions 560500217 Split Ring Hanger 1in

Product Description

The ASC ENGINEERED SOLUTIONS 560500217 is a galvanized split ring hanger designed to support pipe runs from threaded rod in mechanical, plumbing, and HVAC piping systems. Built from carbon steel with a galvanized finish, it accepts 1-inch pipe and mounts on 3/8-inch threaded rod. The split ring design allows the hanger to be installed around an existing pipe without full disassembly of the piping run. This hardware is a standard component in commercial and residential pipe support systems installed by licensed plumbers, pipefitters, and mechanical contractors.

This hanger is suited for 1-inch pipe in suspended piping applications where rod-hung support assemblies are required. Typical installations include overhead pipe runs in mechanical rooms, utility spaces, and plenum areas. The galvanized carbon steel construction makes it appropriate for use in environments where mild corrosion resistance is needed. It is commonly installed as part of a complete rod and clevis support system in both new construction and retrofit mechanical work.

Key Features

• Split ring design allows installation on existing pipe without full disassembly
• Galvanized finish provides mild corrosion resistance for general mechanical environments
• Accepts 1-inch pipe with 3/8-inch threaded rod connection
• Carbon steel construction for durable load support in suspended piping applications
• Lightweight at 0.16 pounds per unit for easy handling and installation

Compatibility

Designed as an OEM-style replacement and standard-fit split ring hanger for 1-inch pipe suspended piping systems using 3/8-inch threaded rod support assemblies.

Installation Notes

Installation is typically performed by licensed plumbers or mechanical contractors. Shut off and depressurize the piping system before modifying any support hardware on active lines. Ensure the threaded rod and attachment point are rated for the load of the supported pipe, including fluid weight. Follow local mechanical codes and manufacturer guidelines for spacing and rod sizing requirements.

Technical Specifications

• Material: Carbon Steel
• Finish: Galvanized
• Pipe Size: 1 inch
• Rod Size: 3/8 inch
• Type: Split Ring Hanger
• Weight: 0.16 pounds per unit

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 560500217
