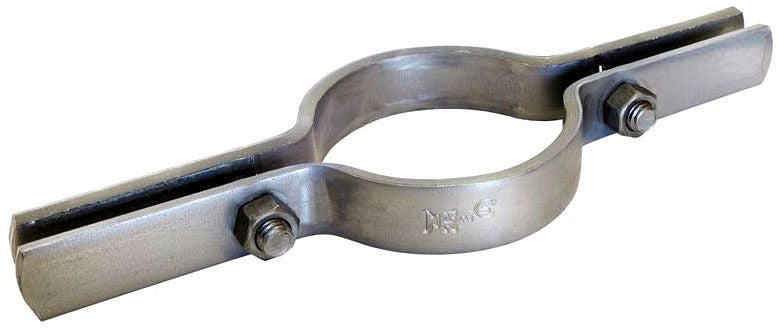

Asc Engineered Solutions 500361076 Galvanized Riser Clamp 2.5 in

Product Description

The ASC ENGINEERED SOLUTIONS 500361076 is a galvanized steel riser clamp designed to support vertical IPS (Iron Pipe Size) pipe runs at floor penetrations and structural support points. This clamp bears the load of the pipe column above, preventing downward movement and maintaining proper pipe alignment in risers. Fabricated from steel with a galvanized finish, it resists corrosion in the humid and wet environments common to plumbing mechanical rooms and multi-story pipe chases. At 2.5 inches, it fits standard 2.5-inch IPS pipe and weighs 1.75 pounds. Plumbers and pipefitters install this hardware during rough-in on commercial and residential riser assemblies.

This riser clamp is used wherever vertical pipe runs must be supported at floor or slab penetrations. Typical applications include multi-story residential buildings, commercial plumbing systems, and industrial pipe risers where IPS-dimensioned steel or iron pipe passes through concrete or structural decking. The galvanized finish makes it suitable for damp, wet, and moderately corrosive environments such as mechanical rooms, parking structures, and utility chases.

Key Features

• Galvanized steel construction resists corrosion in wet mechanical environments
• Sized for 2.5-inch IPS pipe for direct, no-modification fitment
• Clamp-style design bears vertical pipe load at floor and slab penetrations
• 1.75-pound unit weight indicates solid steel construction appropriate for load-bearing riser support
• Compatible with standard IPS pipe dimensions used in plumbing and fire protection rough-in

Compatibility

Designed as an OEM-style replacement and standard riser support clamp for 2.5-inch IPS-dimensioned pipe in residential and commercial plumbing riser assemblies.

Installation Notes

Riser clamps are installed by licensed plumbers or pipefitters and must comply with applicable local plumbing codes and the International Plumbing Code (IPC) for pipe support spacing and load requirements. Shut off water supply and depressurize the line before making any modifications to an existing riser assembly. The clamp bears on the floor sleeve or structural deck — confirm that the bearing surface is rated for the imposed pipe load before completing the installation. Do not use this clamp as a lateral seismic restraint without verifying code compliance for your jurisdiction.

Technical Specifications

• Type: Riser Clamp
• Material: Steel, Galvanized
• Pipe Size: 2.5 inches IPS
• Weight: 1.75 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 500361076
