Asc Engineered Solutions 500359740 Clevis Hanger 8 in

Product Description

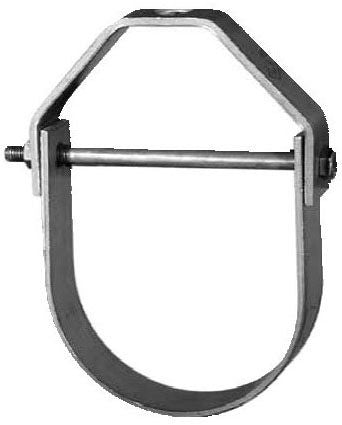

The ASC ENGINEERED SOLUTIONS 500359740 is an 8-inch galvanized clevis hanger designed to support pipe in mechanical, plumbing, and HVAC installations. Built from carbon steel with a galvanized finish, this hanger accepts a 3/4-inch threaded rod and holds pipe securely to overhead structure. The clevis design allows the pipe to rest in a saddle-style cradle, distributing load evenly and keeping the pipe aligned along its run. At 4.05 pounds, it is a heavy-duty component suited for commercial and industrial applications where corrosion resistance and structural integrity are required.

This clevis hanger is used in overhead pipe support systems for hot and cold water lines, HVAC refrigerant piping, compressed air lines, and similar mechanical systems. It is typically installed by licensed plumbers, pipefitters, and mechanical contractors working on new construction or retrofit projects. The 8-inch size accommodates larger-diameter pipe runs commonly found in commercial mechanical rooms and industrial facilities.

Key Features

• 8-inch pipe size for large-diameter pipe support applications
• Galvanized finish provides corrosion resistance in wet or humid environments
• Carbon steel construction delivers high load-bearing strength
• Accepts 3/4-inch threaded rod for standard overhead suspension
• Clevis saddle design distributes pipe load evenly across the hanger

Compatibility

Designed as an OEM-style replacement or new-installation clevis hanger for 8-inch pipe in mechanical, plumbing, and HVAC overhead support systems using 3/4-inch threaded rod.

Installation Notes

Installation is typically performed by licensed plumbers or pipefitters in accordance with applicable mechanical codes such as the IPC or IFGC. Before installing or replacing hangers on an active system, shut off and depressurize the pipe as required. Use appropriate hardware for the ceiling or structural substrate — beam clamps, concrete inserts, or all-thread rod as specified by the project engineer. Verify that rod and hanger load ratings meet the requirements for the pipe size, fluid, and insulation being supported.

Technical Specifications

• Size: 8 inches
• Rod Size: 3/4 inches
• Material: Carbon Steel
• Finish: Galvanized
• Type: Clevis Hanger
• Weight: 4.05 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 500359740
