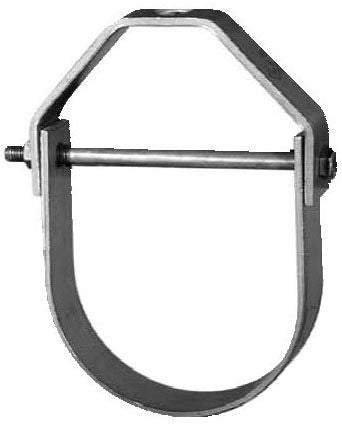

Asc Engineered Solutions 500359542 Clevis Hanger 1.5 in

Product Description

The ASC Engineered Solutions 500359542 is a galvanized clevis hanger designed to support 1-1/2 inch pipe from 3/8 inch threaded rod. Constructed from carbon steel with a galvanized finish, this hanger provides corrosion resistance in mechanical rooms, crawlspaces, and other environments where moisture exposure is a concern. Clevis hangers allow the supported pipe to expand and contract longitudinally, making them a standard choice for hot and cold piping systems in commercial and residential mechanical installations. Plumbers, pipefitters, and mechanical contractors install this type of hardware as part of overhead pipe support systems.

This hanger is suited for use in plumbing, HVAC, and general mechanical piping applications where pipe must be suspended from overhead structure using threaded rod. The 1-1/2 inch pipe size and 3/8 inch rod size are among the most common configurations in light commercial and residential mechanical systems. The galvanized finish makes it appropriate for installations in damp or semi-exposed areas such as crawlspaces, basements, and utility chases.

Key Features

• Galvanized finish on carbon steel construction for corrosion resistance in damp environments
• Supports 1-1/2 inch pipe from 3/8 inch threaded rod
• Clevis design permits longitudinal pipe movement to accommodate thermal expansion
• Lightweight at 0.44 pounds for easy handling during overhead installation

Compatibility

Designed as an OEM-style replacement and standard fit for 1-1/2 inch pipe support applications using 3/8 inch threaded rod hanger systems in mechanical, plumbing, and HVAC installations.

Installation Notes

Clevis hangers are typically installed by licensed plumbers or pipefitters working under IPC or IFGC guidelines for pipe support spacing. Shut down the piping system and relieve pressure before repositioning or replacing any hanger on an active line. Ensure the threaded rod, nut, and hanger are properly torqued and that the rod is anchored to rated structural members. Do not use this hanger to support pipe loads exceeding the rated capacity of the 3/8 inch rod assembly.

Technical Specifications

• Pipe Size: 1-1/2 inches
• Rod Size: 3/8 inches
• Material: Carbon Steel
• Finish: Galvanized
• Item Weight: 0.44 pounds
• Type: Clevis Hanger

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 500359542
