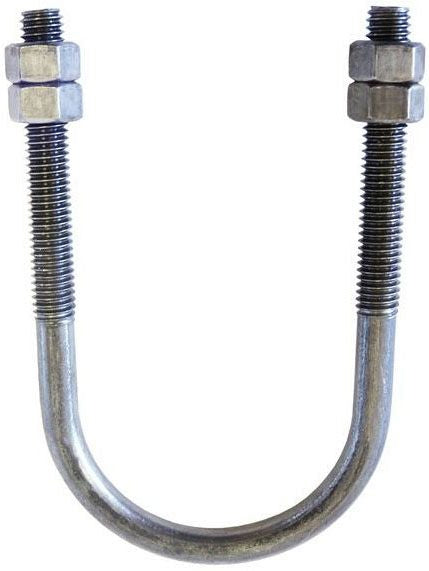

Asc Engineered Solutions 500320106 4 Inch Galvanized U Bolt

Product Description

The ASC ENGINEERED SOLUTIONS 500320106 is a 4-inch galvanized U bolt with nuts, designed for pipe support and mechanical fastening applications across plumbing, HVAC, and industrial piping systems. The hot-dip or electro-galvanized finish provides corrosion resistance in exposed or damp environments. Supplied with nuts included, this U bolt is ready for immediate installation without sourcing additional hardware. At 0.90 pounds per unit, it is a standard-weight fastener suited for repeated field use. Licensed plumbers, pipefitters, and mechanical contractors commonly stock this type of hardware for routine pipe support work.

This U bolt is used to secure round pipe or conduit to structural supports, hangers, and strut channel in residential and commercial mechanical systems. Typical applications include securing water supply lines, drain lines, refrigerant piping, and conduit runs to overhead or wall-mounted supports. The 4-inch size accommodates piping of corresponding nominal diameter, making it a commonly specified component in both new construction and retrofit service work.

Key Features

• 4-inch nominal size for standard pipe support applications
• Galvanized finish for corrosion resistance in damp or exposed conditions
• Includes nuts, ready for installation out of the package
• Lightweight at 0.90 pounds per unit for easy field handling
• Standard U bolt geometry compatible with common pipe hanger and strut systems

Compatibility

Designed as an OEM-style replacement and standard stocking fastener for 4-inch pipe support applications in plumbing, HVAC, and mechanical piping systems.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or mechanical contractors. Shut off the relevant piping system and relieve pressure before repositioning or replacing pipe supports. Follow IPC and applicable local mechanical codes for hanger spacing and support requirements. Do not overtighten nuts to the point of deforming the pipe wall, and ensure the galvanized finish is not compromised during installation to maintain corrosion protection.

Technical Specifications

• Size: 4 inches
• Type: U Bolt with Nuts
• Finish: Galvanized
• Weight: 0.90 pounds per unit

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 500320106
