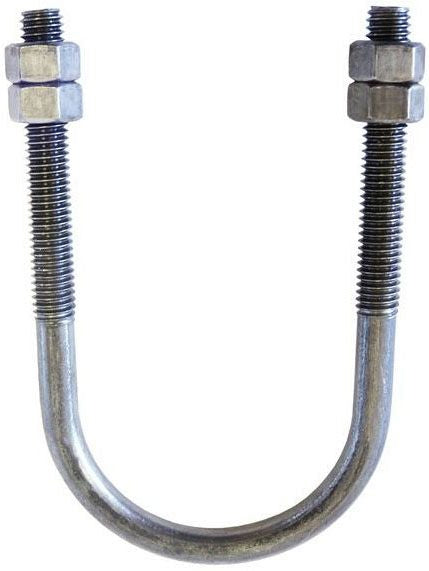

Asc Engineered Solutions 500320056 Galvanized U-bolt 1-1/2 in

Product Description

The ASC Engineered Solutions 500320056 is a 1-1/2 inch galvanized U-bolt with nuts, designed for securing pipe, conduit, and similar round stock to structural supports in mechanical, plumbing, and electrical installations. The galvanized finish provides corrosion resistance suited for both indoor and outdoor service environments. Supplied with mating nuts, this U-bolt is ready to install without sourcing additional hardware. At 0.30 pounds, the fastener is lightweight but built for reliable clamping in trade applications where secure pipe support is required.

This U-bolt is used in residential and commercial piping systems, conduit runs, and mechanical support applications where 1-1/2 inch nominal pipe or tubing must be anchored to beam flanges, strut channel, or framing members. It is a common component in plumbing rough-in, HVAC refrigerant line support, and electrical conduit installations. Installers typically use it anywhere a secure, corrosion-resistant pipe clamp is needed at a 1-1/2 inch nominal size.

Key Features

• Galvanized finish for corrosion resistance in wet and outdoor environments
• 1-1/2 inch nominal size for standard pipe and conduit support
• Includes mating nuts for complete, ready-to-install assembly
• Lightweight at 0.30 pounds for easy handling during installation
• Also referenced as 137G and B3188 for cross-reference sourcing

Compatibility

Designed as an OEM-style replacement and standard-service U-bolt for 1-1/2 inch nominal pipe, conduit, or tubing support applications in plumbing, HVAC, and electrical systems.

Installation Notes

U-bolts of this type are installed by plumbers, pipefitters, and electricians as part of pipe or conduit support systems. Shut off the relevant system and depressurize or de-energize lines before working on supports near active services. Fasten nuts to equal torque on both legs to prevent cocking the bolt against the pipe. Follow IPC, IFGC, or NEC support spacing requirements as applicable to the pipe or conduit material being supported.

Technical Specifications

• Size: 1-1/2 inches
• Type: U-Bolt with Nuts
• Finish: Galvanized
• Weight: 0.30 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 500320056
