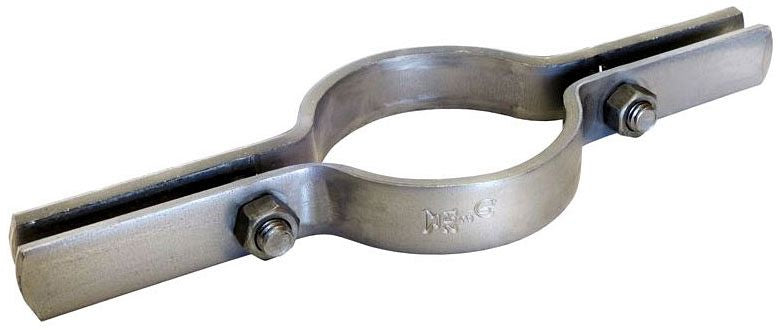

Asc Engineered Solutions 500173554 Black Riser Clamp 1-1/2 in

Product Description

The ASC ENGINEERED SOLUTIONS 500173554 is a black steel riser clamp sized for 1-1/2 inch IPS pipe. Riser clamps are used to support vertical pipe runs at floor penetrations, suspending the weight of the riser from the structure rather than allowing it to bear on fittings or adjacent piping. This clamp is fabricated from steel with a black finish and is designed for use in plumbing and mechanical piping systems. Licensed plumbers and pipefitters install riser clamps during rough-in on multi-story commercial and residential construction projects.

This clamp is suited for vertical IPS pipe runs in plumbing, fire protection, and mechanical systems where structural support of a 1-1/2 inch riser is required. It is a standard component in multi-story construction where pipe must be anchored at each floor level to prevent downward migration and reduce stress on horizontal connections and fittings.

Key Features

• Sized for 1-1/2 inch IPS pipe
• Steel construction for load-bearing durability in vertical pipe support applications
• Black finish suitable for exposed or concealed installations
• Standard riser clamp profile compatible with floor sleeve and slab penetration support applications

Compatibility

Designed as a standard riser clamp for 1-1/2 inch IPS pipe in plumbing and mechanical piping systems.

Installation Notes

Riser clamps are installed by licensed plumbers or pipefitters. Before installation, relieve system pressure and confirm the pipe is properly aligned within the floor sleeve or penetration opening. The clamp seats beneath the floor slab or structural framing to transfer pipe load to the structure. Follow applicable plumbing codes, including IPC provisions for pipe support spacing and loading, when specifying clamp placement on multi-story risers.

Technical Specifications

• Type: Riser Clamp
• Size: 1-1/2 inches
• Pipe Standard: IPS
• Material: Steel
• Finish: Black
• Weight: 2.01 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 500173554
