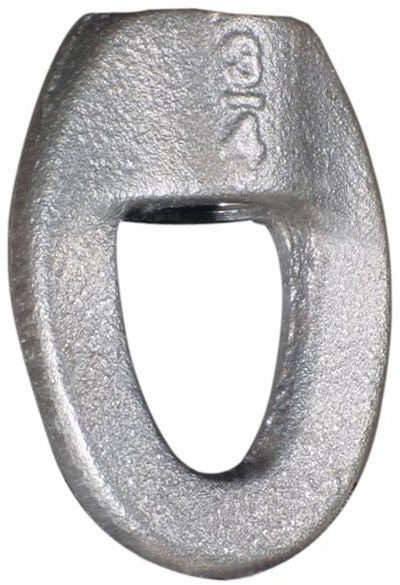

Asc Engineered Solutions 500013248 Eye Socket Rod Hanger

Product Description

The ASC ENGINEERED SOLUTIONS 500013248 is a 3/4-inch eye socket rod hanger designed for suspending threaded rod in mechanical, plumbing, and HVAC piping installations. This fitting accepts threaded rod through its socket eye, providing a secure attachment point for hanging pipe, conduit, or duct support assemblies from structural members above. The black finish provides a consistent appearance in finished or exposed mechanical spaces. At 0.31 pounds per unit, it is a lightweight yet sturdy component suited for overhead support systems. Licensed mechanical contractors and pipefitters typically install this type of hardware as part of a complete rod hanger assembly.

Eye socket rod hangers like the 500013248 are commonly used in commercial and residential mechanical rooms, suspended ceiling systems, and above-deck piping runs. The 3/4-inch size accommodates standard threaded rod dimensions used in pipe support and seismic bracing assemblies. This fitting is a standard component in threaded rod hanger systems throughout HVAC, plumbing, and general mechanical contracting applications.

Key Features

• 3/4-inch size fits standard threaded rod hanger assemblies
• Black finish for consistent appearance in mechanical and exposed installations
• Lightweight at 0.31 pounds per unit for easy overhead handling
• Eye socket design provides secure attachment point for suspended support systems
• Suitable for HVAC, plumbing, and general mechanical contracting use

Compatibility

Designed as an OEM-style replacement and standard-fit component for 3/4-inch threaded rod hanger systems used in mechanical, plumbing, and HVAC pipe support installations.

Installation Notes

Installation is typically performed by licensed mechanical contractors, pipefitters, or plumbers as part of a suspended pipe or duct support assembly. Power down or de-energize any adjacent electrical systems before working overhead in mechanical spaces. Follow applicable local mechanical codes and SMACNA or MSS SP-58 hanger and support standards for proper rod hanger spacing and load requirements. Inspect the attachment point and structural anchor before applying load to the assembly.

Technical Specifications

• Size: 3/4 inches
• Type: Eye Socket Rod Hanger
• Finish: Black
• Weight: 0.31 pounds per unit

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 500013248
