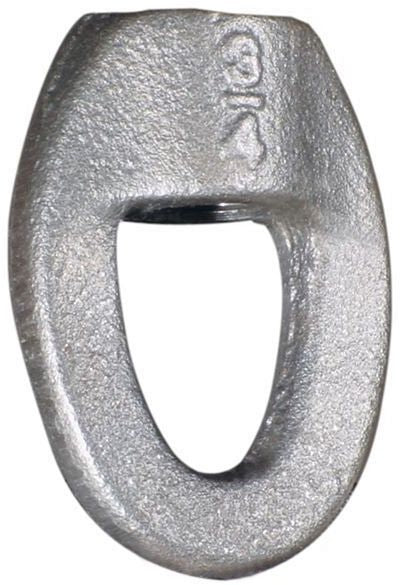

Asc Engineered Solutions 500013222 Eye Socket Rod Hanger 1/2 in

Product Description

The ASC ENGINEERED SOLUTIONS 500013222 is a 1/2-inch eye socket rod hanger designed for suspending threaded rod in overhead pipe and mechanical system installations. This fitting accepts 1/2-inch rod and provides a looped eye socket connection point for hanging rods from structural attachments such as beam clamps, inserts, or anchor points. The black finish offers corrosion resistance suitable for indoor mechanical room and utility space applications. At 0.13 pounds per unit, it is a lightweight yet functional hardware component used by plumbers, pipefitters, and mechanical contractors in commercial and residential installations.

Eye socket rod hangers like the 500013222 are commonly used in pipe support assemblies where threaded rod is suspended from structural members. The eye socket end connects to an overhead attachment, and the rod threads downward to support pipe hangers, trapeze assemblies, or mechanical equipment. This fitting is appropriate for HVAC duct support systems, plumbing pipe runs, and general mechanical support work in both new construction and retrofit applications.

Key Features

• 1/2-inch rod size for standard threaded rod compatibility
• Eye socket design connects to overhead structural attachment points
• Black finish for corrosion resistance in indoor mechanical environments
• Lightweight at 0.13 pounds per unit for easy handling and installation
• Suitable for use in pipe support, HVAC, and general mechanical suspension assemblies

Compatibility

Designed as an OEM-style replacement and standard component for 1/2-inch threaded rod suspension systems used in mechanical, plumbing, and HVAC pipe support assemblies.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or mechanical contractors as part of a pipe support or suspension system. Ensure the overhead structural attachment point is rated for the intended load before installing the rod and hanger assembly. Follow applicable building codes including ASME and local mechanical codes for pipe support spacing and load requirements. Do not exceed the load rating of any component in the rod hanger assembly.

Technical Specifications

• Size: 1/2 inch
• Type: Eye Socket Rod Hanger
• Finish: Black
• Weight: 0.13 pounds per unit

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 500013222
