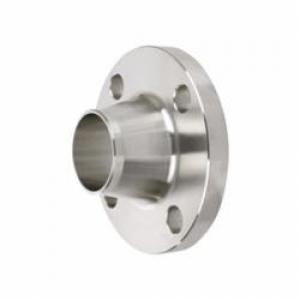

ASC Engineered Solutions 4381003080 4 150 316/L S40 RF WN FLG

Product Description

The ASC Engineered Solutions MPN 4381003080 is a weld neck flange designed specifically for piping systems. This raised face flange has a nominal size of four inches and caters to various industrial applications. It features a unique design optimized for strength and stability under pressure.

• Forged from durable 316/316L stainless steel.
• Compatible with SCH 40/STD bore specifications.
• Standard 150 lb pressure rating.

Product Highlights

This weld neck flange is suitable for environments requiring corrosion resistance and reliability. It can be used in different piping systems for liquid and gas transport.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Material: Forged 316/316L Stainless Steel

Technical Specifications

• Nominal Size: 4 in
• Inside Diameter: 4.03 in
• Outside Diameter: 9 in
• Thickness: 0.94 in
• Hub Diameter: 6.44 in
• Length Through Hub: 3 in
• Bolt Circle Diameter: 8-1/2 in
• Number of Bolt Holes: 8
• Bolt Hole Size: 0.88 in
• Bore Size: SCH 40/STD
• Pressure Class: 150 lb
• Series: S1016WN4
