ASC Engineered Solutions 4381002650 1 150 316/L RF THRD FLG

Product Description

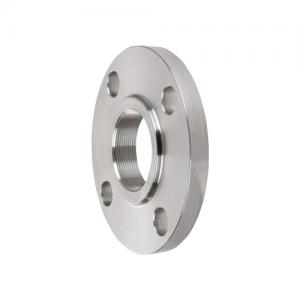

The ASC Engineered Solutions 4381002650 is a raised face flange designed for threaded connections. This flange is made from forged 316L stainless steel, providing durability and resistance to corrosion.

• Nominal size of one inch.
• Features four bolt holes with a diameter of 0.62 inches.
• Rated for a pressure class of 150 lb.

Product Highlights

This flange is suitable for various piping applications where strong and reliable joints are needed. Its forged stainless steel construction ensures long-lasting performance even in demanding environments.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Series: S1016TH

Technical Specifications

• Bolt Circle Diameter: 3.12 in
• Bolt Hole Size: 0.62 in
• Connection Type: Thread
• Hub Diameter: 1.94 in
• Length Through Hub: 0.69 in
• Material: Forged 316L Stainless Steel
• Nominal Size: 1 in
• Number of Bolt Holes: 4
• Outside Diameter: 4-1/4 in
• Pressure Class: 150 lb
• Thickness: 0.56 in
