ASC Engineered Solutions 4371006180 2 40276-TH 200# Globe Valve S

Product Description

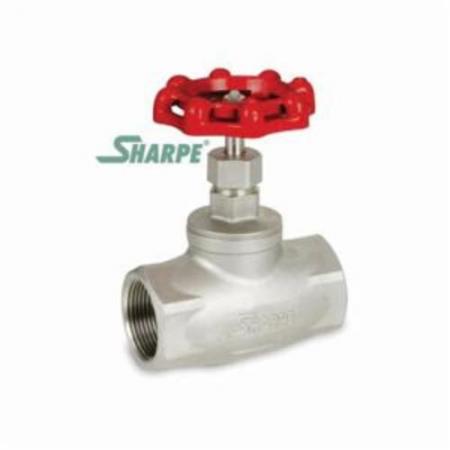

The ASC Engineered Solutions Globe Valve, MPN 4371006180, is designed for various piping applications. It features a two-inch nominal size and is suitable for pressures up to 200 pounds. The valve operates reliably within a temperature range of zero to three hundred fifty degrees Fahrenheit.

• Handwheel actuator for easy operation.
• Constructed with a durable 316 stainless steel body.
• Threaded bonnet with a non-rising stem design.

Product Highlights

This globe valve is ideal for controlling flow in multiple settings, including commercial and industrial applications. It includes a PTFE seal for enhanced leak prevention and performs well under high pressure.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Product Name: 2 40276-TH 200# Globe Valve S

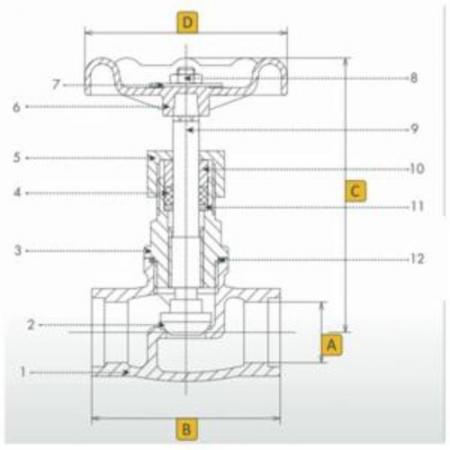

Technical Specifications

• Nominal Size: 2 in
• Inlet to Outlet Length: 5-1/2 in
• Top to Inlet Center: 5.77 in
• Hand Wheel Diameter: 3.9 in
• Body Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel
• End Style: FNPT
• Pressure Class: 200 lb
• Actuator Type: Handwheel
• Temperature Rating: 0 to 350 deg F
• Softgoods Material: PTFE Seal
• Series: 40276
