Asc Engineered Solutions 390202000 Flange Adapter 2x6

Product Description

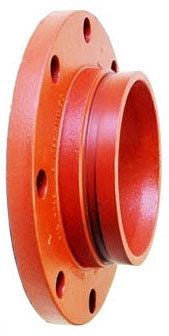

The ASC Engineered Solutions 390202000 is a grooved end flange adapter designed to connect grooved pipe to flanged components within commercial and industrial piping systems. This fitting creates a reliable mechanical joint between grooved-end pipe and standard flanged valves, pumps, or equipment without requiring welding or threading. The adapter is part of the Gruvlok product line and is sized at 2 inches by 6 inches, making it suited for moderate-flow applications where a flanged transition is needed at a grooved pipe termination. Licensed plumbers and pipefitters are the primary installers of this type of fitting.

This grooved end flange adapter is used in commercial HVAC hydronic systems, fire protection piping, and industrial process piping where grooved mechanical joining transitions to flanged equipment connections. The 2-inch by 6-inch configuration accommodates common pipe sizes found in building mechanical rooms and equipment skids. It is appropriate for both new construction and retrofit applications where flanged equipment must be tied into an existing grooved piping system.

Key Features

• Transitions grooved-end pipe to flanged equipment or components
• Eliminates the need for welding or threading at the flange connection point
• 2-inch by 6-inch sizing for common commercial and industrial piping applications
• Mechanical grooved joining for repeatable, field-serviceable connections
• Compatible with standard grooved coupling systems used in HVAC and fire protection

Compatibility

Designed as an OEM-style grooved mechanical fitting for use with standard grooved pipe couplings and flanged components in commercial HVAC, fire protection, and industrial piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes. Isolate and depressurize the piping system fully before installing or removing any grooved fitting. Verify that the pipe end is properly grooved to the manufacturer specification before seating the adapter, and inspect the gasket seating surface for damage prior to assembly. Refer to the applicable IPC or IFGC sections and local authority having jurisdiction for system-specific requirements.

Technical Specifications

• Size: 2 inches x 6 inches
• Product Type: Grooved End Flange Adapter
• Product Line: Gruvlok 7788

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390202000
