Asc Engineered Solutions 390182467 Trackhead Bolt and Nut

Product Description

The ASC ENGINEERED SOLUTIONS 390182467 is a zinc-plated trackhead bolt and nut set designed for use with grooved pipe coupling systems. The bolt measures 5/8 inch in diameter and 3-1/4 inches in length, providing the clamping force needed to secure plain-end couplings in piping assemblies. This hardware is manufactured domestically and carries a zinc-plated finish for corrosion resistance in typical mechanical room and commercial piping environments. Plumbers, pipefitters, and mechanical contractors install this hardware as part of grooved piping system assembly and maintenance.

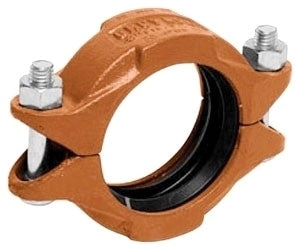

This bolt and nut set is intended for use with the Roughneck FIG 7005 Plain-End Coupling in grooved piping installations. It is suited for commercial and industrial piping applications where grooved-end mechanical couplings are specified. The zinc-plated finish makes it appropriate for indoor and protected mechanical system environments. This hardware is typically encountered during new construction, system retrofits, and coupling replacement work on fire protection, HVAC, and process piping systems.

Key Features

• 5/8 inch diameter by 3-1/4 inch length trackhead bolt provides correct clamp engagement for FIG 7005 coupling housings
• Zinc-plated finish offers corrosion resistance for standard mechanical system service environments
• Domestic manufacture supports traceability and quality consistency for commercial piping projects
• Designed specifically for Roughneck FIG 7005 Plain-End Coupling assemblies
• Supplied as a matched bolt and nut set for straightforward replacement or new installation

Compatibility

Designed for use with the Roughneck FIG 7005 Plain-End Coupling as specified by the manufacturer. Verify coupling model and bolt size requirements before installation.

Installation Notes

Installation is performed by licensed pipefitters or plumbers in accordance with applicable mechanical codes and the coupling manufacturer's torque and assembly instructions. De-pressurize and drain the piping system fully before removing or replacing coupling hardware. Use the correct hand tools to achieve proper seating of the coupling housing without over-stressing the bolt. Inspect the coupling gasket and housing for wear or damage whenever trackhead hardware is replaced.

Technical Specifications

• Size: 5/8 x 3-1/4 inches
• Finish: Zinc Plated
• Country of Origin: USA
• Suitable For Use With: Roughneck FIG 7005 Plain-End Coupling

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 390182467
