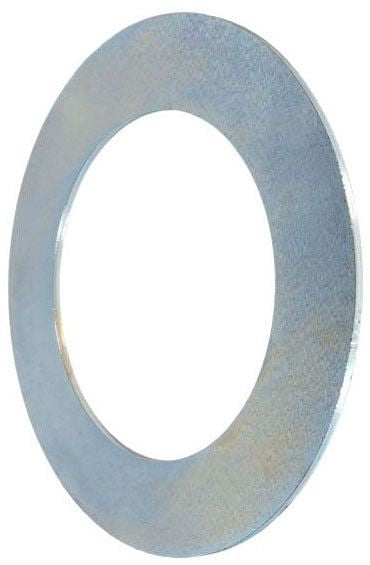

Asc Engineered Solutions 390080901 Gruvlok Seal Ring 6 in

Product Description

The ASC Engineered Solutions 390080901 is a Gruvlok seal ring designed for use with the 7012 flange fitting in grooved piping systems. This elastomeric seal ring provides the pressure-tight gasket interface between mating flanged connections, ensuring a leak-free joint when properly assembled. It is sized for 6-inch pipe and is installed by pipefitters and plumbers working on grooved mechanical piping systems in commercial, industrial, and mechanical room applications.

This seal ring is intended for grooved piping assemblies where the 7012 flange is specified. Typical applications include HVAC hydronic systems, fire protection piping, and industrial process piping where grooved flange connections are used in lieu of traditional welded or threaded flanges. The ring seats into the flange face to create a reliable seal under pressure.

Key Features

• Sized for 6-inch grooved pipe connections
• Designed specifically for the Gruvlok 7012 flange fitting
• Provides the primary sealing element at the flange face interface
• Elastomeric construction conforms to flange faces for leak-free performance
• Direct OEM-style replacement seal ring for grooved flange assemblies

Compatibility

Designed for use with the Gruvlok 7012 flange fitting in 6-inch grooved piping systems.

Installation Notes

Installation is performed by licensed pipefitters or plumbers following applicable piping codes such as the IPC and ASME B31 standards. The system must be fully depressurized and drained before replacing the seal ring. Inspect the flange faces for damage or debris before seating the new ring. Follow the Gruvlok assembly instructions for proper bolt torque sequence to achieve an even, leak-free seal.

Technical Specifications

• Pipe Size: 6 inches
• Compatible Fitting: Gruvlok 7012 Flange

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390080901
