Asc Engineered Solutions 390021046 Fig 7064 Reducing Branch Tee

Product Description

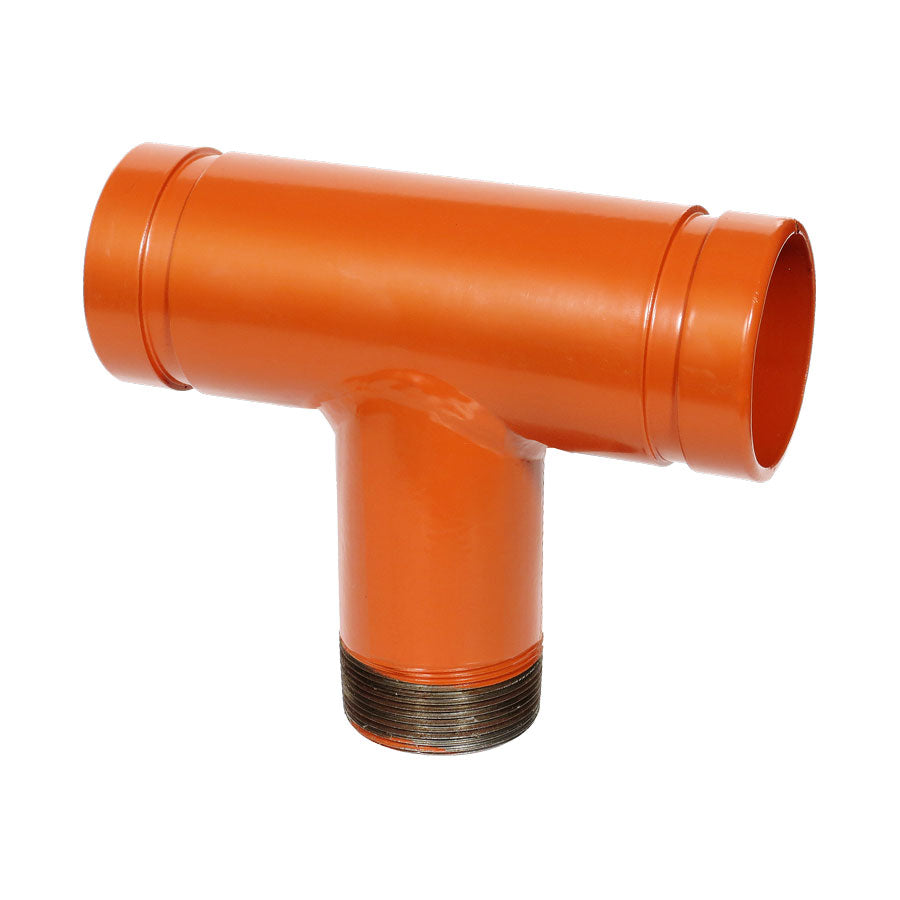

The ASC ENGINEERED SOLUTIONS 390021046 is a FIG 7064 reducing branch tee designed for grooved-end piping systems. Fabricated from carbon steel with a rust-inhibiting orange paint finish, this fitting connects an 8-inch main run to a 2-inch threaded branch outlet. The run ends accept grooved couplings, while the branch end is male NPT threaded. With a schedule 40/STD pressure rating and an overall weight of 37.5 pounds, this tee is built for demanding mechanical piping applications. Licensed plumbers, pipefitters, and mechanical contractors typically install this fitting in commercial or industrial piping systems where flow needs to be redirected or split at a reduced branch size.

This reducing branch tee is suited for fire protection, HVAC hydronic, and industrial process piping systems that use grooved-end pipe joining methods. The 8 x 8 x 2 inch nominal configuration allows a full-bore grooved main with a reduced threaded branch takeoff. It is manufactured domestically in the United States and is intended for installation by qualified pipefitters or licensed mechanical contractors working with grooved piping systems on commercial or industrial projects.

Key Features

• Reducing branch configuration: 8 x 8 inch grooved run with 2 inch male NPT branch outletCarbon steel construction with rust-inhibiting orange paint finish for corrosion resistance in service
• Schedule 40/STD pressure rating suitable for standard commercial and industrial piping applications
• Fabricated construction to FIG 7064 series specifications
• Outside diameter dimensions of 8.625 x 8.625 x 2.375 inches for precise fitment with grooved couplings
• Domestically manufactured in the United States

Compatibility

Designed for use with grooved-end pipe joining systems on SCH 40/STD carbon steel pipe with 8-inch nominal main and 2-inch nominal branch connections. End styles are grooved on the run and male NPT on the branch.

Installation Notes

Installation should be performed by a licensed pipefitter or mechanical contractor following applicable codes including ASME and local mechanical codes. Depressurize and drain the piping system fully before removing or installing any fittings. Inspect grooved pipe ends for proper groove dimensions and condition before seating couplings. Ensure the male NPT branch connection is made with appropriate thread sealant rated for the fluid and pressure service of the system.

Technical Specifications

• Series: FIG 7064
• Nominal Size: 8 x 8 x 2 inches
• Outside Diameter: 8.625 x 8.625 x 2.375 inches
• End Style: Grooved x Grooved x Male NPT
• Schedule Rating: SCH 40/STD
• Material: Carbon Steel
• Finish: Rust Inhibiting Orange Painted
• Method of Manufacture: Fabricated
• Weight: 37.5 pounds
• Country of Origin: United States

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 390021046
