Asc Engineered Solutions 390020063 Fig 7063 Branch Tee 2 in

Product Description

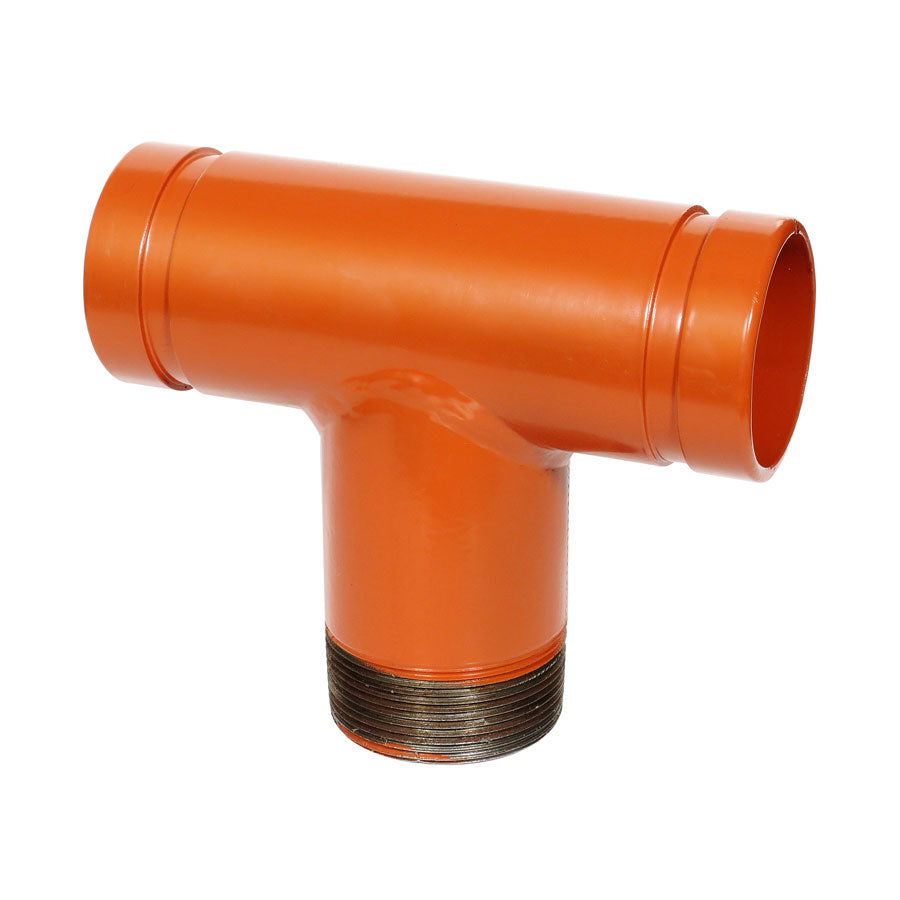

The ASC ENGINEERED SOLUTIONS 390020063 is the Gruvlok FIG 7063 Branch Tee, a fabricated carbon steel pipe fitting designed to create a perpendicular branch connection in grooved piping systems. It features a 2-inch nominal size with an outside diameter of 2.375 inches and is rated for Schedule 40 / Standard wall pipe. The end configuration is grooved on the run ends and male NPT threaded on the branch outlet, allowing direct integration into grooved mechanical piping networks where a threaded branch takeoff is required. This fitting arrives rust-inhibiting orange painted and is domestically manufactured.

The FIG 7063 Branch Tee is suited for commercial and industrial piping installations including fire protection, HVAC hydronic systems, and general mechanical piping. The grooved-by-grooved-by-threaded configuration makes it a practical choice when a grooved main run must transition to a threaded branch line without additional fittings. Licensed pipefitters and mechanical contractors are the primary installers for this type of fitting in new construction and retrofit applications.

Key Features

• Grooved x Grooved x Male NPT end style for direct grooved-to-threaded branch connections
• 2-inch nominal size with 2.375-inch outside diameter for SCH 40 / Standard wall pipe
• Fabricated carbon steel construction with rust-inhibiting orange paint finish
• Domestically manufactured for consistent dimensional tolerances
• Compatible with standard grooved mechanical coupling systems

Compatibility

Designed as an OEM-style replacement or new-installation branch tee for 2-inch nominal Schedule 40 / Standard wall grooved piping systems using standard grooved mechanical couplings.

Installation Notes

Installation should be performed by a licensed pipefitter or mechanical contractor in accordance with applicable local codes and the fitting manufacturer's installation guidelines. Depressurize and drain the piping system fully before removing or installing any grooved fittings. Verify that the grooved pipe ends meet the dimensional requirements for the couplings being used, and apply appropriate thread sealant to the male NPT branch outlet before making the threaded connection.

Technical Specifications

• Series: FIG 7063
• Fitting Type: Branch Tee
• Nominal Size: 2 inches
• Outside Diameter: 2.375 inches
• Wall Rating: SCH 40 / Standard
• End Style: Grooved x Grooved x Male NPT
• Material: Carbon Steel
• Finish: Rust Inhibiting Orange Paint
• Construction: Fabricated
• Country of Origin: Domestic

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 390020063
