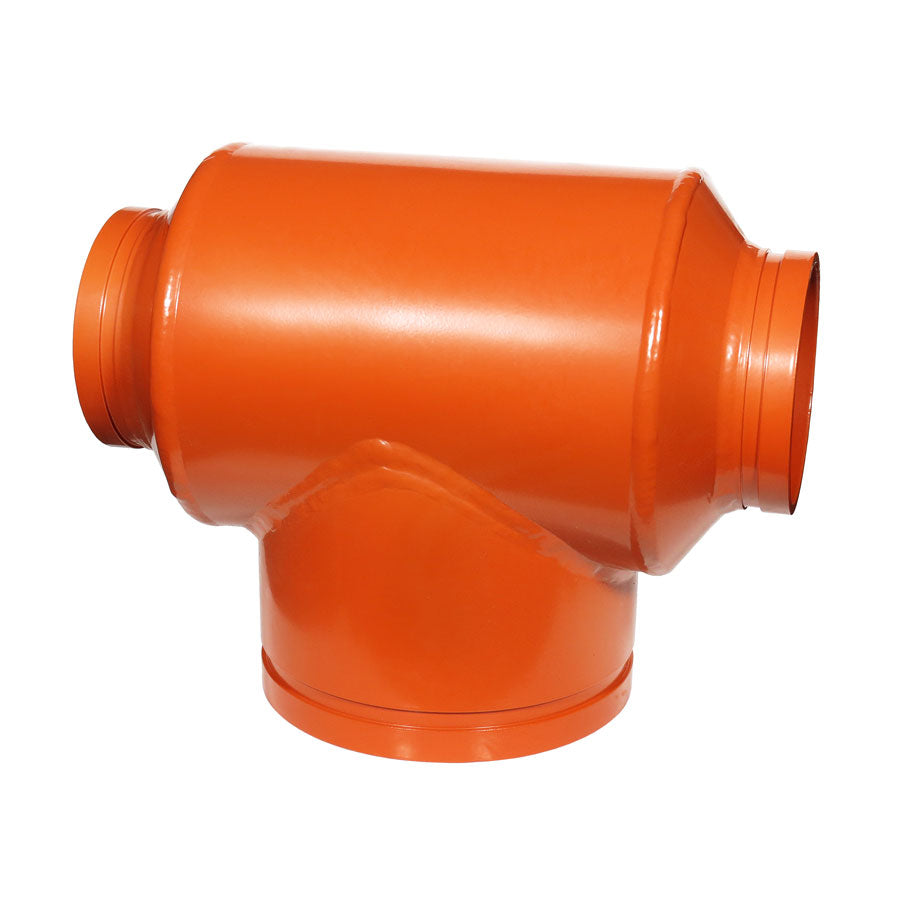

Asc Engineered Solutions 390019081 Reducing Tee 10x10x8 in

Product Description

The ASC Engineered Solutions 390019081 is a fabricated carbon steel reducing tee designed for grooved piping systems operating under demanding mechanical and industrial conditions. Part of the Gruvlok FIG 7061 series, this fitting connects a 10 x 10 x 8 inch nominal pipe configuration using a grooved end style compatible with Schedule 40 and standard wall pipe. Outer diameters measure 10-3/4 x 10-3/4 x 8-5/8 inches. The rust-inhibiting orange painted finish provides corrosion protection during storage and service. Licensed plumbers and pipefitters install this type of fitting in commercial and industrial mechanical systems.

This reducing tee is suited for commercial HVAC piping, fire protection distribution, and industrial fluid handling systems where a branch reduction is required. The grooved end style allows for fast mechanical coupling assembly without welding or threading. Its domestic manufacture supports project specifications that require domestically produced materials. SCH 40 and standard wall compatibility makes this fitting applicable to a broad range of pressure piping assemblies common in large commercial and institutional buildings.

Key Features

• FIG 7061 series grooved reducing tee for 10 x 10 x 8 inch nominal pipe
• Fabricated carbon steel construction for strength in pressure piping systems
• Outer diameters of 10-3/4 x 10-3/4 x 8-5/8 inches for precise grooved coupling fit
• Compatible with SCH 40 and standard wall pipe specifications
• Rust-inhibiting orange painted finish for corrosion protection
• Domestically manufactured to support domestic-content project requirements

Compatibility

Designed as a grooved OEM-style replacement or new-install fitting for Schedule 40 and standard wall carbon steel piping systems using Gruvlok FIG 7061 series grooved mechanical couplings in 10 x 10 x 8 inch nominal configurations.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical codes. Depressurize and drain the piping system fully before removing or installing grooved fittings. Verify groove dimensions and pipe wall thickness conform to the coupling manufacturer specifications before assembly. Do not use impact tools on coupling housings during installation.

Technical Specifications

• Series: FIG 7061
• Fitting Type: Reducing Tee
• Nominal Size: 10 x 10 x 8 inches
• Outer Diameter: 10-3/4 x 10-3/4 x 8-5/8 inches
• End Style: Grooved
• Wall Schedule: SCH 40 / Standard
• Material: Carbon Steel
• Finish: Rust Inhibiting Orange Paint
• Construction: Fabricated
• Origin: Domestic

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390019081
