Asc Engineered Solutions 390016764 Gruvlok 7060 Grooved Tee 1.5 in

Product Description

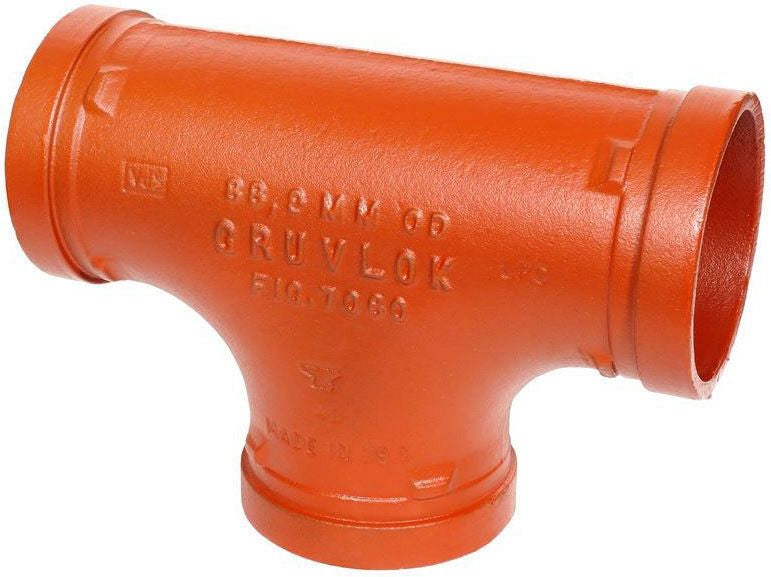

The ASC Engineered Solutions 390016764 is a Gruvlok 7060 grooved painted tee designed for use in grooved-end mechanical piping systems. This ductile iron tee provides a branch outlet connection in a grooved piping assembly, allowing flow to be directed in three directions within the same system. At 1-1/2 inches, it fits standard grooved pipe of the same nominal size. The painted exterior finish provides basic corrosion resistance during storage and installation. Licensed pipefitters and mechanical contractors typically install this fitting as part of fire suppression, HVAC hydronic, or industrial piping systems.

This tee is suited for commercial and industrial mechanical piping installations where grooved coupling systems are the specified joining method. The 7060 series tee is commonly used in hydronic heating and cooling distribution, fire protection sprinkler mains and branches, and general industrial piping where grooved-end components are required. It is installed using standard grooved mechanical couplings compatible with 1-1/2-inch nominal grooved pipe.

Key Features

• Ductile iron construction for strength and durability in pressurized piping systems
• 1-1/2-inch nominal grooved end connections for compatibility with standard grooved coupling systems
• Painted exterior finish for basic corrosion protection
• Tee configuration allows three-way flow distribution in a grooved piping layout
• Gruvlok 7060 series fitting for use in mechanical, fire protection, and HVAC piping applications

Compatibility

Designed as an OEM-style grooved fitting for use with standard grooved mechanical couplings and 1-1/2-inch nominal grooved-end pipe in fire protection, HVAC hydronic, and industrial piping systems.

Installation Notes

Installation should be performed by a licensed pipefitter or qualified mechanical contractor in accordance with applicable local mechanical and fire protection codes. Depressurize and isolate the piping system before removing any existing fittings or couplings. Use manufacturer-specified grooved couplings and gaskets rated for the system pressure and fluid type. Inspect grooves on mating pipe ends for proper depth and width before assembly to ensure a leak-free connection.

Technical Specifications

• Fitting Material: Ductile Iron
• Fitting Size: 1-1/2 inches
• Finish: Painted
• Item Weight: 1.54 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 390016764
