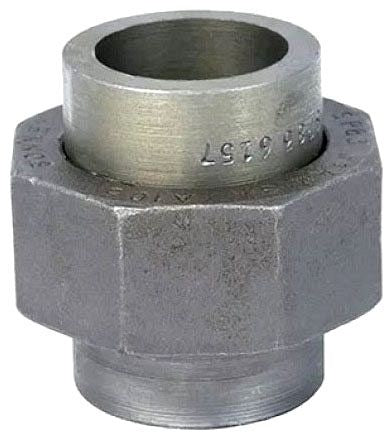

Asc Engineered Solutions 362501405 Socketweld Union 1-1/4 in

Product Description

The ASC Engineered Solutions 362501405 is a socketweld ground joint union designed for high-pressure piping systems in industrial and commercial applications. Built from forged steel to a 3000 lb pressure class, this fitting provides a reliable, leak-resistant connection at socketweld joints. The ground joint mating surface ensures a tight metal-to-metal seat, making it a dependable choice for steam, oil, gas, and other demanding fluid-handling systems. Sized at 1-1/4 inches, it is installed by licensed pipefitters and plumbers working on high-pressure process or mechanical piping.

This union is suited for use in commercial and industrial piping systems where a socketweld configuration is specified. The 3000 lb pressure class rating makes it appropriate for elevated-pressure applications such as steam distribution lines, hydraulic systems, and process piping. The 1-1/4-inch size fits standard schedule pipe of that diameter, and the female-threaded nut design allows the union to be broken and reconnected without disturbing the rest of the piping run.

Key Features

• Forged steel construction for strength and durability under high-pressure service conditions
• 3000 lb pressure class rating suitable for demanding industrial and commercial applications
• Ground joint mating surface provides a metal-to-metal seat for leak-resistant performance
• Socketweld end connections for secure, weld-in installation on 1-1/4-inch pipe
• Female threaded union nut allows field disconnection without cutting the piping run

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/4-inch socketweld piping systems rated to 3000 lb pressure class.

Installation Notes

Installation should be performed by a qualified pipefitter or licensed plumber in accordance with applicable mechanical and piping codes. Depressurize and isolate the piping system completely before cutting into any line or breaking an existing union. Socketweld fittings require proper fit-up and certified welding procedures; verify weld clearance gaps per applicable standards before welding. Inspect the ground joint seating surfaces for nicks or debris prior to assembly to ensure a proper metal-to-metal seal.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1-1/4 inches
• Pressure Class: 3000 lb
• Connection Type: Socketweld
• Nut Type: Female Threaded
• Weight: 2.73 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 362501405
