Asc Engineered Solutions 362215204 Socketweld Insert 2x1.5in

Product Description

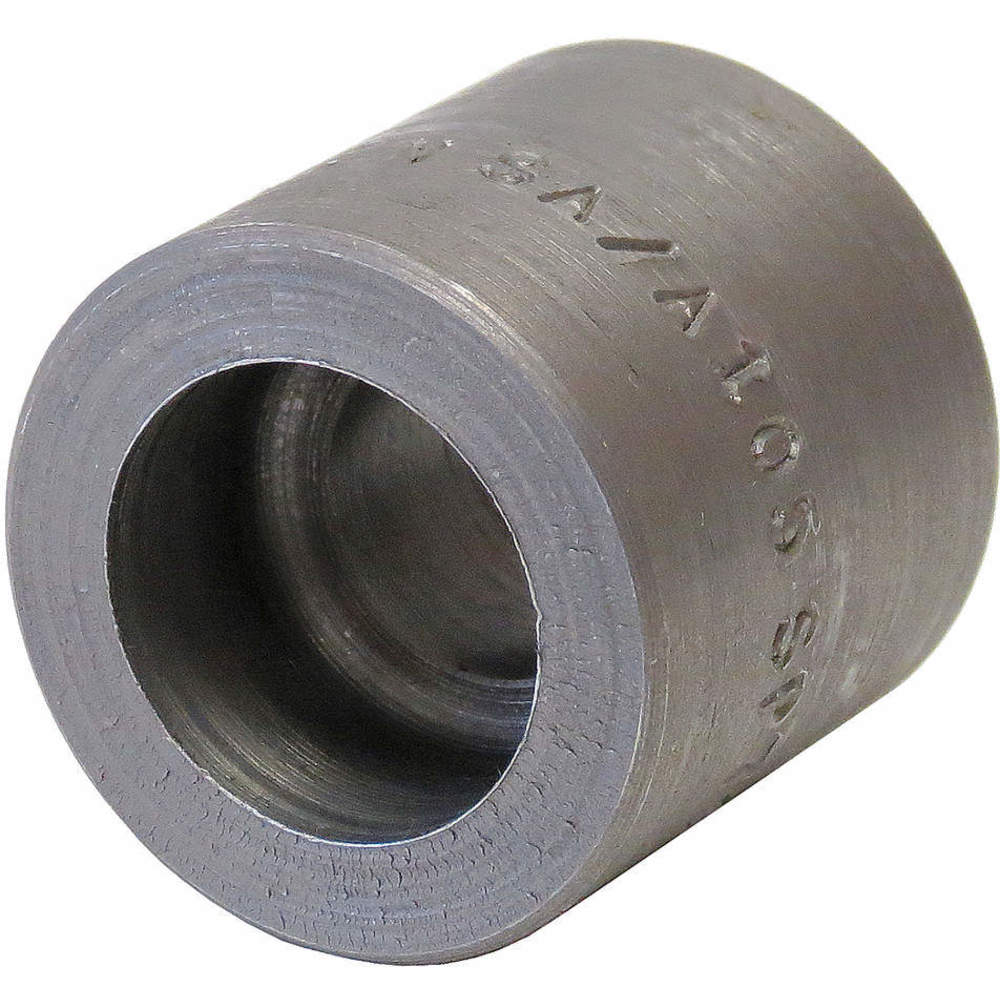

The ASC ENGINEERED SOLUTIONS 362215204 is a forged steel socketweld insert fitting rated for 3000 class service. It transitions from a 2-inch nominal pipe size down to a 1-1/2-inch nominal pipe size using a socketweld end connection on both ends. This type of insert fitting is used to reduce pipe bore within a welded piping system. It is installed by licensed pipefitters, welders, and industrial plumbers working on high-pressure process, utility, or mechanical piping systems. At 1.50 pounds, the fitting is a solid, full-material forged steel component suited for demanding service environments.

This socketweld insert is designed for use in high-pressure piping systems where socket weld joints are specified. The 3000 class pressure rating makes it appropriate for steam, hydronic, oil, gas, and chemical process lines that require welded connections in lieu of threaded or flanged joints. Typical installation environments include industrial plants, commercial mechanical rooms, refineries, and power generation facilities where code-compliant welded piping is required.

Key Features

• Forged steel construction for high-strength, pressure-rated service
• 3000 class pressure rating suitable for demanding industrial and commercial piping
• 2-inch x 1-1/2-inch reducing configuration for bore reduction within a welded run
• Socketweld end connections for full-penetration weld joints
• Compact insert-style fitting minimizes overall assembly length

Compatibility

Designed as an OEM-style replacement or new-installation socketweld insert fitting for 3000 class forged steel welded piping systems requiring a 2-inch to 1-1/2-inch reduction.

Installation Notes

Installation must be performed by a qualified pipefitter or certified welder in accordance with applicable codes such as ASME B31.1 or ASME B31.3. Depressurize and drain the piping system fully before cutting in or replacing any fitting. Socket weld fittings require a specific gap between the pipe end and the socket bottom prior to welding to prevent cracking during thermal cycling. Post-weld inspection procedures should follow the project specification and applicable code requirements.

Technical Specifications

• Fitting Material: Forged Steel
• Type: Socketweld Insert
• Pressure Class: 3000
• Inlet Size: 2 inches
• Outlet Size: 1-1/2 inches
• Item Weight: 1.50 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362215204
