Asc Engineered Solutions 362211401 Socketweld Insert

Product Description

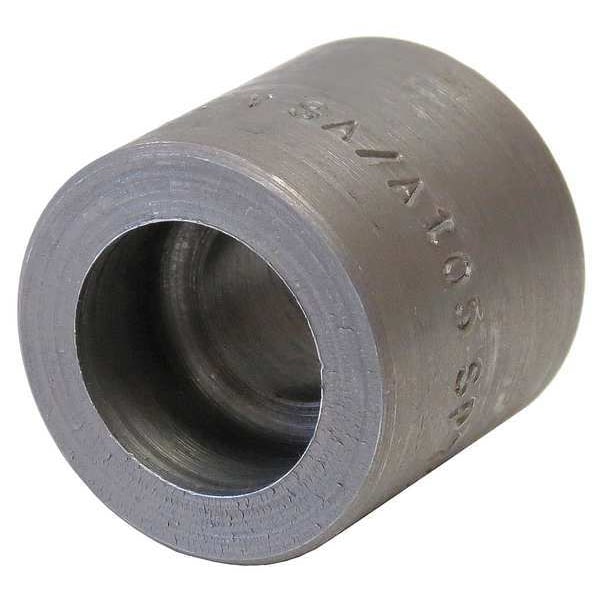

The ASC ENGINEERED SOLUTIONS 362211401 is a forged steel socketweld insert fitting rated at 3000 class, designed for high-pressure piping systems. Sized at 1-1/2 inches by 1-1/4 inches, this insert transitions between pipe sizes within a socketweld assembly. It is fabricated from forged steel for strength and durability in demanding industrial and commercial piping applications. Licensed pipefitters and plumbers install this type of fitting during new construction and retrofit work on high-pressure process, mechanical, or utility piping systems.

This socketweld insert is suited for use in 3000-class forged steel piping systems where a reducing connection between 1-1/2-inch and 1-1/4-inch socketweld pipe ends is required. It is commonly installed in industrial facilities, commercial mechanical rooms, and process piping where welded connections are specified for leak-tight, high-pressure service. The forged steel construction makes it appropriate for steam, oil, gas, and high-pressure water service lines where threaded or slip-on connections are not acceptable.

Key Features

• Forged steel construction for high-pressure, high-temperature piping service
• 3000-class pressure rating suitable for demanding industrial and commercial applications
• 1-1/2-inch by 1-1/4-inch reducing configuration for in-line size transitions
• Socketweld end type provides a full-penetration weld connection for leak-tight integrity
• Compact and lightweight at 0.62 pounds per unit

Compatibility

Designed as an OEM-style replacement or new-installation component for 3000-class forged steel socketweld piping systems requiring a 1-1/2-inch by 1-1/4-inch reducing insert fitting.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and piping codes, including ASME B31.1 or B31.3 as required by the system classification. Depressurize and isolate the piping system completely before cutting in or replacing any fitting. Socketweld fittings require a qualified welder to perform the weld joint; verify required clearance gap per applicable welding procedure before tacking. Post-weld inspection and pressure testing should follow applicable code requirements before returning the system to service.

Technical Specifications

• Material: Forged Steel
• Type: Socketweld Insert
• Size: 1-1/2 inches x 1-1/4 inches
• Pressure Class: 3000
• Weight: 0.62 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362211401
