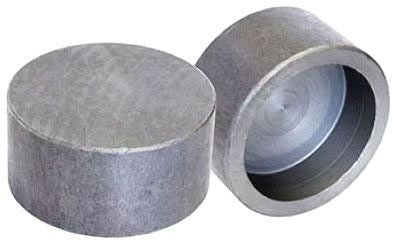

Asc Engineered Solutions 362085409 Socket Weld Cap 1 in 3000 Lb

Product Description

The ASC Engineered Solutions 362085409 is a forged steel socket weld pipe cap rated for 3000 lb service. It terminates the end of a 1-inch socket weld pipe run, creating a pressure-tight closure in high-pressure piping systems. The forged steel construction provides strength and durability suited to demanding industrial and commercial applications. This fitting is installed by licensed pipefitters and plumbers working on high-pressure process, steam, or utility piping. At 0.60 pounds, it is a compact, solid-body fitting with no threaded components at the weld interface.

This cap is used in industrial process piping, commercial mechanical systems, and high-pressure utility lines where a permanent, leak-free end closure is required. The socket weld design accepts pipe into a recessed socket before fillet welding, making it well suited for smaller-diameter piping where threading is not preferred and where system pressure or fluid type demands a welded connection. It is appropriate for use in steam, hydraulic, and other pressurized fluid systems operating within its rated limits.

Key Features

• Forged steel construction for high-strength, pressure-rated service
• 3000 lb pressure rating suitable for demanding high-pressure applications
• 1-inch fitting size fits standard 1-inch socket weld pipe connections
• Socket weld end connection allows fillet weld attachment for a leak-tight seal
• Compact and lightweight at 0.60 pounds for easy handling and installation

Compatibility

Designed as an OEM-style replacement and standard fitting for 1-inch Class 3000 socket weld piping systems in industrial and commercial mechanical applications.

Installation Notes

Installation must be performed by a qualified pipefitter or welder in accordance with applicable codes including ASME B16.11 for socket weld fittings. Depressurize and drain the piping system completely before cutting into any existing line. Insert pipe to the full socket depth, then back off slightly before tack welding to allow for weld shrinkage. Post-weld inspection should follow applicable code requirements for the service classification.

Technical Specifications

• Fitting Size: 1 inch
• Connection Type: Socket Weld
• Pressure Rating: 3000 lb
• Fitting Material: Forged Steel
• Item Weight: 0.60 pounds

Standard Information

• Brand: ASC Engineered Solutions
• Manufacturer Part Number: 362085409
