Asc Engineered Solutions 362073207 Half Coupling 1 in 3000 Lb

Product Description

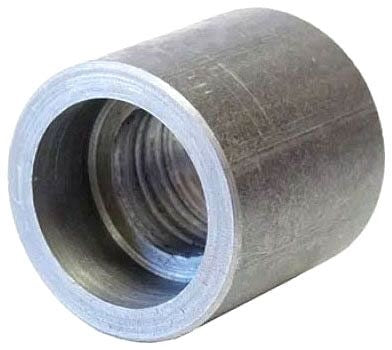

The ASC ENGINEERED SOLUTIONS 362073207 is a forged steel socketweld half coupling rated for 3000 lb service. This fitting is designed for high-pressure pipe systems where a branch connection or end connection is needed on a run of pipe. The socketweld end accepts pipe inserted into the socket before fillet welding, creating a strong, leak-resistant joint suited for demanding industrial and mechanical piping applications. At 1 inch in size and 0.66 pounds, it is a compact fitting handled by licensed pipefitters and welders working on pressure piping systems.

This half coupling is used in industrial facilities, commercial mechanical rooms, and process piping installations where Class 3000 forged fittings are specified. It is appropriate for high-pressure steam, hydraulic, and process fluid lines where socketweld construction is required by the system design or applicable piping code. Pipefitters and welders are the typical installing trade for this type of fitting.

Key Features

• Forged steel construction for high-pressure, high-stress service
• 3000 lb pressure rating suitable for Class 3000 piping systems
• Socketweld end preparation for fillet-welded pipe connections
• Half coupling design for branch or terminal pipe connections
• Compact 1 inch fitting size at 0.66 pounds for easy handling

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Class 3000 socketweld forged steel piping systems requiring 1 inch half couplings.

Installation Notes

Installation must be performed by a qualified pipefitter or certified welder in accordance with ASME B31.1, ASME B31.3, or the applicable piping code for the system. De-pressurize and isolate the piping system completely before any fitting work begins. The pipe end must be fully inserted to the socket base before fillet welding, and gap and fit-up requirements should follow the applicable welding procedure specification. Do not use this fitting beyond its rated pressure class.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1 inch
• Pressure Rating: 3000 lb
• Connection Type: Socketweld
• Type: Half Coupling
• Weight: 0.66 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362073207
