Asc Engineered Solutions 362061202 Full Coupling 1-1/4 in 3000 Lb

Product Description

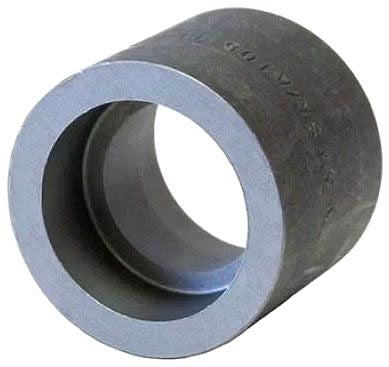

The ASC ENGINEERED SOLUTIONS 362061202 is a forged steel socketweld full coupling rated at 3000 LB pressure class. Designed for high-pressure piping systems, this full coupling connects two pipes of equal diameter using a socket weld configuration. The forged steel construction provides the strength and integrity required for demanding industrial and commercial piping applications. At 1-1/4 inches in size, it fits mid-range pipe runs where a reliable, permanent joint is required. Licensed pipefitters and plumbers install this fitting in systems where welded connections are specified for pressure containment and long-term durability.

This socketweld full coupling is suited for high-pressure process piping, industrial plant work, and commercial mechanical systems where threaded connections are not acceptable and a welded joint is required. The 3000 LB pressure rating makes it appropriate for steam, hydraulic, and other high-pressure fluid service applications. It is typically found in industrial facilities, refineries, power plants, and commercial mechanical rooms.

Key Features

• Forged steel construction for high-strength, high-pressure service
• 3000 LB pressure class rating suitable for demanding fluid and steam systems
• Socketweld end configuration for a permanent, full-penetration weld joint
• Full coupling design connects two pipes of matching diameter inline
• 1-1/4 inch nominal pipe size for mid-range piping runs

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/4 inch nominal pipe size socketweld piping systems rated at 3000 LB pressure class.

Installation Notes

Installation should be performed by a qualified pipefitter or welder in accordance with applicable codes including ASME B31.1 or B31.3 as required by the system design. Depressurize and isolate the piping system completely before cutting into any existing line. The socket weld joint requires proper gap setting between pipe end and socket shoulder prior to welding, per applicable welding procedures. Do not use this fitting in service conditions that exceed its rated pressure class.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 1-1/4 inches
• Pressure Rating: 3000 LB
• Connection Type: Socketweld Full Coupling
• Item Weight: 0.75 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362061202
