Asc Engineered Solutions 362026205 Socket Weld Tee 2 in 3000 Lb

Product Description

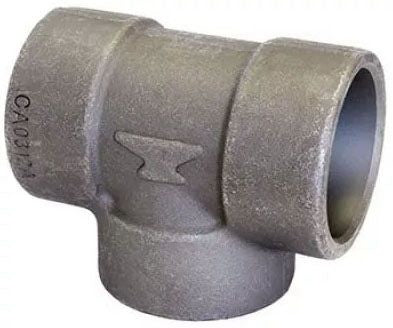

The ASC ENGINEERED SOLUTIONS 362026205 is a forged steel socket weld tee rated for 3000 lb pressure class service. This full-size tee fitting is designed for high-pressure piping systems where a welded, permanent branch connection is required. Manufactured from forged steel, it provides the structural integrity needed in demanding industrial and commercial pipe installations. At 2 inches, it fits standard 2-inch pipe and is welded in place by a qualified pipe fitter or welder. Weighing 4.25 pounds per unit, it is a solid, heavy-duty component suited for process, utility, and mechanical piping runs.

This socket weld tee is used in high-pressure piping systems across industrial, commercial, and mechanical applications. Socket weld fittings are common in systems where pipe sizes are 2 inches and under, offering a clean, flush bore connection before the weld bead is applied. Typical install scenarios include steam lines, hydraulic systems, compressed air headers, and process fluid piping where permanent, leak-resistant joints are required. This fitting is appropriate for use in systems operating within the 3000 lb pressure class rating.

Key Features

• Forged steel construction for high-pressure, high-stress piping service
• 3000 lb pressure class rating suits demanding process and utility systems
• 2-inch socket weld end connections for permanent, welded pipe joints
• Full-size tee configuration provides a straight-through run with a 90-degree branch outlet
• Weighs 4.25 pounds per unit, consistent with forged steel quality and wall thickness

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch, 3000 lb class socket weld piping systems using standard socket weld pipe and fittings per ASME B16.11 dimensional practice.

Installation Notes

Socket weld fittings are installed by qualified pipe fitters or certified welders. The system must be fully depressurized, drained, and isolated before removal of any existing fitting or placement of this tee. A gap should be left between the pipe end and the socket base before welding per standard socket weld practice. All welding should comply with applicable codes including ASME B31.1, B31.3, or the governing piping code for the specific system.

Technical Specifications

• Fitting Material: Forged Steel
• Fitting Size: 2 inches
• Pressure Class: 3000 lb
• Connection Type: Socket Weld
• Item Weight: 4.25 pounds

Standard Information

• Brand: ASC ENGINEERED SOLUTIONS
• Manufacturer Part Number: 362026205
